Hyundai Palisade: Maintenance / Climate control air filter

Hyundai Palisade (LX2) 2020-2024 Owner's Manual / Maintenance / Climate control air filter

Filter Inspection

The climate control air filter should be replaced according to the Maintenance Schedule. If the vehicle is operated in severely air-polluted cities or on dusty rough roads for a long period and/or if transporting pets or occupants smoke inside the vehicle, then it should be inspected more frequently and replaced sooner. Replace the climate control air filter by following the procedure below and be careful to avoid damaging other components.

Hyundai Palisade. Climate control air filter

1. With the glove box open, remove the stoppers on both sides to allow the glove box to hang freely on the hinges.

Hyundai Palisade. Climate control air filter

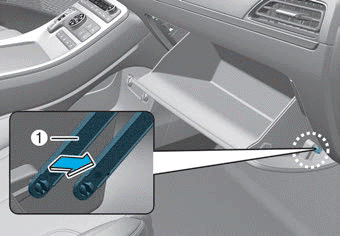

2. Remove the support rod (1).

Hyundai Palisade. Climate control air filter

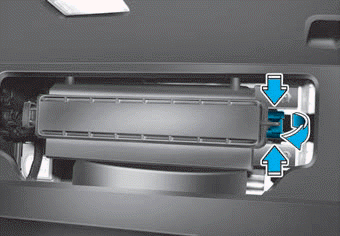

3. Remove the climate control air filter case while pressing the lock on right side of the cover.

Hyundai Palisade. Climate control air filter

4. Replace the climate control air filter.

5. Reassemble in the reverse order of disassembly.

NOTICE

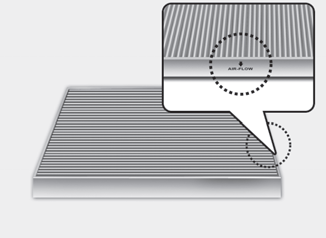

Install a new climate control air filter in the correct direction with the arrow symbol (↓) facing downwards, to prevent noise and reduce effectiveness.
