Hyundai Palisade: Maintenance / Wiper blades

Hyundai Palisade (LX2) 2020-2024 Owner's Manual / Maintenance / Wiper blades

Blade Inspection

Contamination of either the windshield or the wiper blades with foreign matter can reduce the effectiveness of the windshield wiper functionality. Common sources of contamination are insects, tree sap, and hot wax treatments used by some commercial car washes. If the blades are not wiping properly, clean both the window and the blades with a clean cloth dampened with washer fluid.

NOTICE

To prevent damage to the wiper blades, arms or other components, do not:

  • Use gasoline, kerosene, paint thinner, or other solvents on or near them.
  • Attempt to move the wipers manually.
  • Use non-specified wiper blades.

Information

Commercial hot waxes applied by automatic car washes have been known to make the windshield difficult to clean.

Blade Replacement

When the wipers no longer clean adequately, the blades may be worn or cracked, and require replacement.

NOTICE

To prevent damage to the wiper arms or other components, do not attempt to move the wipers manually.

NOTICE

The use of a non-specified wiper blade could result in wiper malfunction and failure.

NOTICE

  • In order to prevent damage to the hood and the wiper arms, the wiper arms should only be lifted when in the top wiping position.
  • Always return the wiper arms to the windshield before driving.

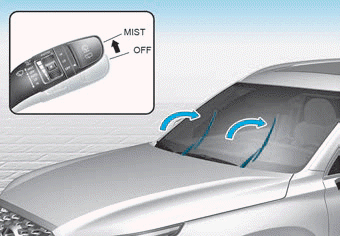

Front windshield wiper service positions

Hyundai Palisade. Wiper blades

This vehicle has a "hidden" wiper design which means that the wipers cannot be lifted when they are in their bottom resting position.

1. Within 20 seconds of turning off the engine, lift and hold the wiper lever up to the MIST position for about 2 seconds until the wipers move to the top wipe position.

2. At this time you can lift the wipers off the windshield.

3. Gently put the wipers back down onto the windshield.

4. Turn the wipers to any ON position to return the wipers to the bottom resting position.

Blade replacement

Hyundai Palisade. Wiper blades

Hyundai Palisade. Wiper blades

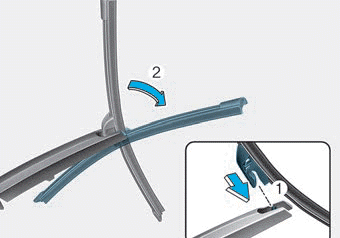

1. Lift up the wiper blade clip. Then lift up the wiper blade.

2. While pushing the lock (1), pull down the wiper blade (2).

Hyundai Palisade. Wiper blades

3. Remove the wiper blade from the wiper arm.

4. Install a new wiper blade assembly in the reverse order of removal.

5. Return the wiper arm on the windshield.

Rear window wiper blade

Hyundai Palisade. Wiper blades

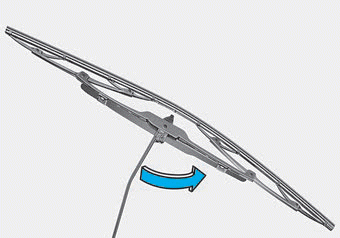

1. Raise the wiper arm and then rotate the wiper blade assembly (1).

2. Pull out the wiper blade assembly (2).

Hyundai Palisade. Wiper blades

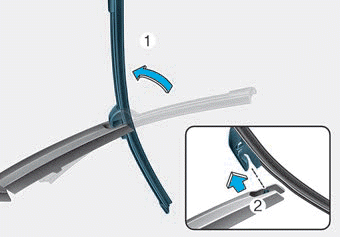

3. Install the new blade assembly by inserting the center part into the slot in the wiper arm until it clicks into place (1).

4. Make sure the blade assembly is installed firmly by trying to pull it slightly.

5. Rotate back the blade assembly so that it aligns with the wiper arm (2).

To prevent damage to the wiper arms or other components, we recommend that the wiper blades be replaced by an authorized HYUNDAI dealer.
