Hyundai Palisade: Braking system / Vehicle Stability Management (VSM)

Hyundai Palisade (LX2) 2020-2024 Owner's Manual / Driving Your Vehicle / Braking system / Vehicle Stability Management (VSM)

The Vehicle Stability Management (VSM) is a function of the Electronic Stability Control (ESC) system. It helps ensure the vehicle stays stable when accelerating or braking suddenly on wet, slippery and rough roads where traction over the four tires can suddenly become uneven.

WARNING

Take the following precautions when using the Vehicle Stability Management (VSM):

  • ALWAYS check the speed and the distance to the vehicle ahead. The VSM is not a substitute for safe driving practices.
  • Never drive too fast for the road conditions. The VSM system will not prevent accidents. Excessive speed in bad weather, slippery and uneven roads can result in severe accidents.

VSM operation

VSM ON condition

The VSM operates when:

  • The Electronic Stability Control (ESC) is on.
  • Vehicle speed is approximately above 13 mph (22 km/h) on curve roads.
  • Vehicle speed is approximately above 6 mph (10 km/h) when the vehicle is braking on a two surface road.

✱The two surface road is made of surfaces which have different friction forces.

When operating

When you apply your brakes under conditions which may activate the ESC, you may hear sounds from the brakes, or feel a corresponding sensation in the brake pedal. This is normal and it means your VSM is active.

Information

The VSM does not operate when:

  • Driving on a banked road such as gradient or incline.
  • Driving rearward.

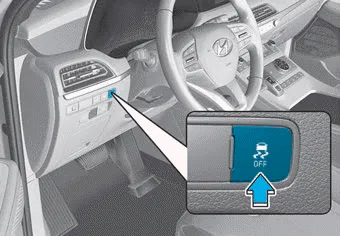

  • ESC OFF indicator light is on.
  • EPS (Electric Power Steering) warning light (Hyundai Palisade. (VSM)) is on or blinks.

Driving with wheels and tires with different sizes may cause the ESC system to malfunction. Before replacing tires, make sure all four tires and wheels are the same size. Never drive the vehicle with different sized tires and wheels installed.

WARNING

If ESC indicator light (Hyundai Palisade. (VSM)) or EPS warning light (Hyundai Palisade. (VSM)) stays on or blinks, your vehicle may have a malfunction with the VSM system. When the warning light illuminates, have your vehicle checked by an authorized HYUNDAI dealer as soon as possible.

    Electronic Stability Control (ESC)

    The Electronic Stability Control (ESC) system helps to stabilize the vehicle during cornering maneuvers. ESC checks where you are steering and where the vehicle is actually going...

    Hill-Start Assist Control (HAC)

    The Hill-Start Assist Control (HAC) helps prevent the vehicle from rolling backwards when starting a vehicle from a stop on a hill. The system operates the brakes automatically for approximately 2 seconds and releases the brake after 2 seconds or when the accelerator pedal is depressed...
