Hyundai Palisade (LX2): Blower / Blower Motor
Repair procedures
| Inspection |
| 1. |

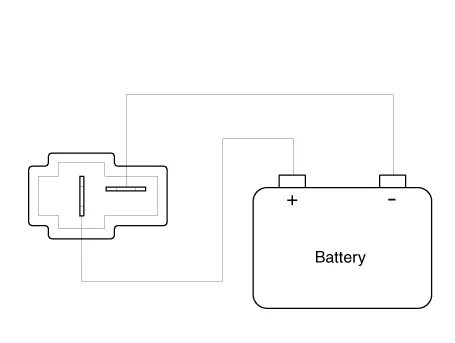

Connect the battery voltage and check the blower motor rotation.
|
| 2. |
If the blower motor does not operate well, substitute with a known-good
blower motor and check for proper operation.
|
| 3. |
Replace the blower motor if it is proved that there is a problem with
it.
|
| Replacement |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |

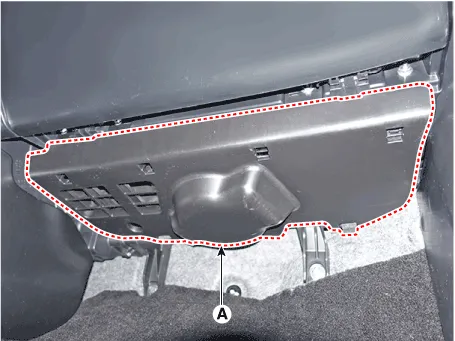

Remove the passenger side crash pad under cover (A).
|
| 3. |

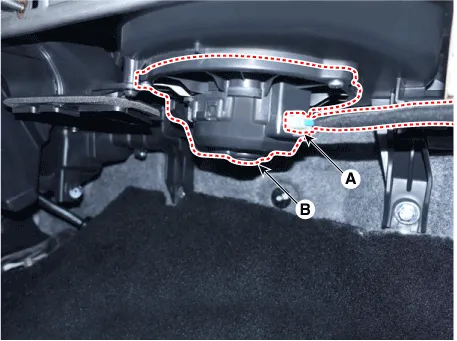

Disconnect the blower motor connector (A) and then remove the blower
motor (B) after loosening the screws.
|
| 4. |
Install in the reverse order of removal.
|
