Hyundai Palisade: Driver Attention Warning (DAW) system / System Setting and Operation

Hyundai Palisade (LX2) 2020-2024 Owner's Manual / Driving Your Vehicle / Driver Attention Warning (DAW) system / System Setting and Operation

System setting

The Driver Attention Warning can be activated from the User Settings menu in the cluster LCD display by following the procedure below.

1. Set the ignition switch to the ON position.

2. Select 'User Settings → Driver Assistance → Driver Attention Warning' in the cluster LCD display.

The system stops operation when the setting is deactivated. However, if the engine is turned off then on again, the system maintains the previous state.

Driver's attention level

Hyundai Palisade. System Setting and Operation

Hyundai Palisade. System Setting and Operation

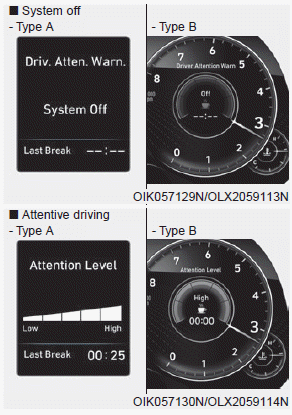

  • The driver can monitor his/her driving conditions on the cluster LCD display. The DAW screen will appear when you select the Assist mode tab (Hyundai Palisade. System Setting and Operation) on the LCD display if the system is activated. For more details, refer to "LCD Display Modes" in chapter 3.
  • The driver's attention level is displayed on the scale of 1 to 5. The lower the number is, the more inattentive the driver is.
  • The level decreases when the driver does not take a break for a certain period of time.
  • The level increases when the driver attentively drives for a certain period of time.
  • When the driver turns on the system while driving, it displays 'Last Break time' and level.

Take a break

Hyundai Palisade. System Setting and Operation

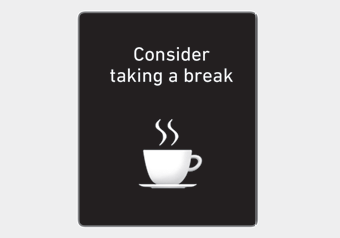

  • The "Consider taking a break“ message appears on the cluster LCD display and a warning sounds to suggest that the driver take a break, when the driver’s attention level is below 1.
  • The Driver Attention Warning (DAW) system will not suggest a break, when the total driving time is shorter than 10 minutes.

CAUTION

If any other warning sound such as seat belt warning chime is already generated, the Driver Attention Warning (DAW) system warning may not sound.

    Driver Attention Warning (DAW) system

    The Driver Attention Warning (DAW) system is designed as a safety feature to help reduce drowsy or inattentive driving. The DAW displays a bar graph that is intended to represent the driver's attention and fatigue level while driving...

    Resetting the System

    The last break time is set to 00:00 and the driver's attention level is set to 5 (very attentive) when the driver resets the Driver Attention Warning (DAW) system...
