Hyundai Palisade: Automatic climate control system / System Operation

Hyundai Palisade (LX2) 2020-2024 Owner's Manual / Convenient Features of Your Vehicle / Automatic climate control system / System Operation

Cooling / Ventilation

1. Select the Face Level Hyundai Palisade. System Operation mode.

2. Set the air intake control to fresh mode.

3. Set the temperature control to the desired position.

4. Set the fan speed control to the desired speed.

Heating

1. Select the Floor Level Hyundai Palisade. System Operation mode.

2. Set the air intake control to fresh mode.

3. Set the temperature control to the desired position.

4. Set the fan speed control to the desired speed.

5. If desired, turn the air conditioning ON with the temperature control knob set to heat in order to dehumidify the air before it enters into the cabin.

If the windshield fogs up, select the Floor & Defrost Hyundai Palisade. System Operation mode or press the Front Defrost Hyundai Palisade. System Operation mode.

Operation Tips

  • To keep dust or unpleasant fumes from entering the car through the ventilation system, temporarily set the air intake control to the recirculation mode. Return the control to the to fresh mode when the unpleasant air outside has diminished. This will help keep the driver alert and comfortable.
  • To help prevent the inside of the windshield from fogging, set the air intake control to fresh mode and the fan speed to the desired position, turn on the air conditioning system, and adjust the temperature control to the desired temperature.

Air conditioning

Your HYUNDAI vehicle air conditioning system is filled with R-134a refrigerant.

1. Start the engine.

2. Press the air conditioning button.

3. Select the Face Level Hyundai Palisade. System Operation mode.

4. Set the air intake control to Recirculation mode temporarily to allow the cabin to cool quickly. When the desired temperature in the cabin is reached, change the air intake control back to Fresh mode.

5. Adjust the fan speed control and temperature control to maintain maximum comfort.

When maximum cooling is desired, set the temperature control to the MAX A/C position, then set the fan speed control to the highest setting.

NOTICE

When using the air conditioning system, monitor the engine temperature gauge closely while driving up hills or in heavy traffic when outside temperatures. Air conditioning system operation when climbing a steep grade or in high outside ambient temperatures can cause engine overheating. Continue to use the fan, but turn the air conditioning system off if the engine temperature gauge indicates engine overheating.

Air conditioning system operation tips

  • If the vehicle has been parked in direct sunlight during hot weather, open the windows for a short time to let the hot air inside the vehicle escape.
  • After sufficient cooling has been achieved, switch back from recirculation mode to fresh mode.
  • To help reduce moisture inside of the windows on rainy or humid days, decrease the humidity inside the vehicle by operating the air conditioning system with the windows and sunroof closed.
  • Use the air conditioning system every month only for a few minutes to ensure maximum system performance.
  • If you operate air conditioner excessively, the difference between the temperature of the outside air and that of the windshield could cause the outer surface of the windshield to fog up, causing loss of visibility. In this case, set the mode selection knob or button to the Hyundai Palisade. System Operation position and fan speed control to the lower speed.

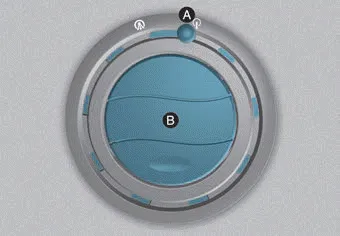

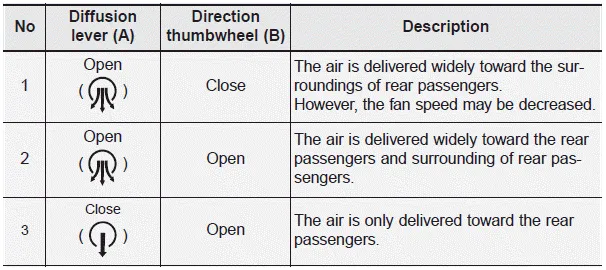

    Rear vents on the headliner

    The rear passengers can adjust the direction of air flow from the rear vents on the headliner. If you operate the rear climate control with rear vents closed, a noise may sound...

    System Maintenance

    Cabin air filter [A] : Outside air, [B] : Recirculated air [C] : Climate control air filter, [D] : Blower [E] : Evaporator core, [F] : Heater core The cabin air filter is installed behind the glove box...
