Hyundai Palisade. Cargo Security Screen

Use the cargo security screen to cover items stored in the cargo area.

To use the cargo security screen

Hyundai Palisade. Cargo Security Screen

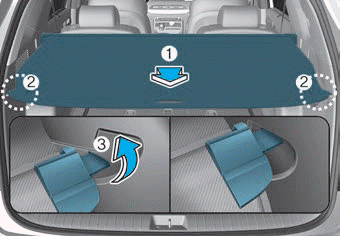

1. Pull the cargo security screen towards the rear of the vehicle by the handle (1).

2. Insert the guide pin (2) into the guide (3).

Information

Pull out the cargo security screen with the handle in the center to prevent the guide pin from falling out of the guide.

When the cargo security screen is not in use:

1. Pull the cargo security screen backward and up to release it from the guides.

2. The cargo security screen will automatically slide back in.

Information

The cargo security screen may not automatically slide back in if the cargo security screen is not fully pulled out. Pull the cargo screen out all the way and then slowly allow the screen to retract back into the mechanism.

To remove the cargo security screen

1. Push one side of the cargo screen inward to compress the spring mechanism and release the screen from the vehicle.

2. While the mechanism is compressed, pull out the cargo security screen.

3. Open the luggage tray and keep the cargo security screen in the tray.

To remove the cargo security screen from the luggage tray

Hyundai Palisade. Cargo Security Screen

1. Pull up the screen board.

Hyundai Palisade. Cargo Security Screen

2. Push in the guide pin.

Hyundai Palisade. Cargo Security Screen

3. While pushing the guide pin, pull out the cargo security screen.

NOTICE

Since the cargo security screen may be damaged or malformed, do not put luggage on it when it is used.

WARNING

  • Do not place objects on the cargo security screen. Such objects may be thrown about inside the vehicle and possibly injure vehicle occupants during an accident or when braking.
  • Never allow anyone to ride in the luggage compartment. It is designed for luggage only.
  • Maintain the balance of the vehicle and locate the weight as forward as possible.
