Hyundai Palisade: Motor Driven Power Steering / Steering Column and Shaft

Hyundai Palisade (LX2) 2020-2024 Service Manual / Steering System / Motor Driven Power Steering / Steering Column and Shaft

Repair procedures
Replacement
[C-MDPS]
1.
Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2.
Turn the steering wheel so that the front wheels are placed in the straight ahead position.
3.
Remove the driver airbag module.
(Refer to Restraint - "Driver Airbag (DAB) Module and Clock Spring")
4.
Remove the steering wheel.
(Referto Steering System - "Steering Wheel")
5.
Remove the clock spring.
(Refer to Restraint - "Driver Airbag (DAB) Module and Clock Spring")
6.
Remove the multifunction switch.
(Refer to Body Electrical System - "Multifunction switch")
7.
Remove the steering column shroud lower panel
(Refer to Body - "Steering Column Shroud lower Panel")
8.
Remove the crash pad lower pannel.
(Refer to Body - "Crash Pad Lower Pannel")
9.

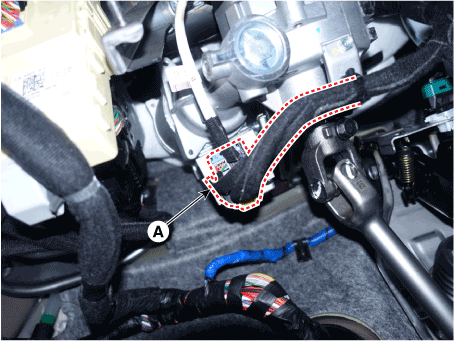

Disconnect the MDPS connector (A).
Hyundai Palisade. Repair procedures
When connecting the connector, be careful not to bend the pins and insert foreign objects.

Hyundai Palisade. Repair procedures

10.

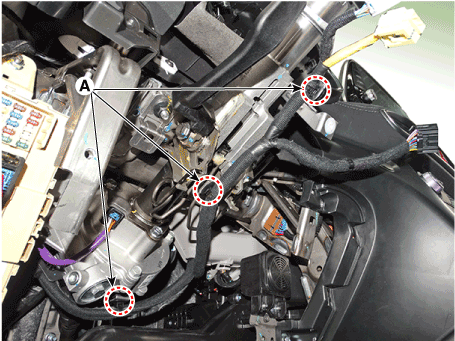

Remove the fixed clip (A) and then remove the wiring from the steering column.

Hyundai Palisade. Repair procedures

11.

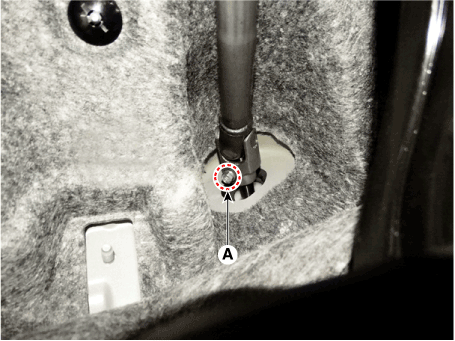

Loosen the bolt (A) and then disconnect the universal joint assembly from the pinion of the steering gear box.
Tightening torque :
32.4 - 37.3 N.m (3.3 - 3.8 kgf.m, 23.9 - 27.5 lb-ft)

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures
Do not reuse the bolt.
Lock the steering wheel in the straight ahead position to prevent the damage of the clock spring inner cable.

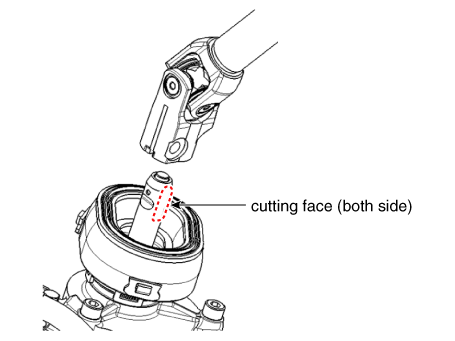

Assemble so that the universal joint hole is inserted matching the cut surface of the pinion shaft.

Hyundai Palisade. Repair procedures

12.

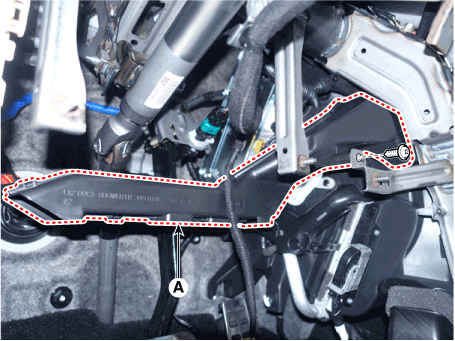

Loosen the mounting screws and remove the shower duct [LH] (A).

Hyundai Palisade. Repair procedures

13.

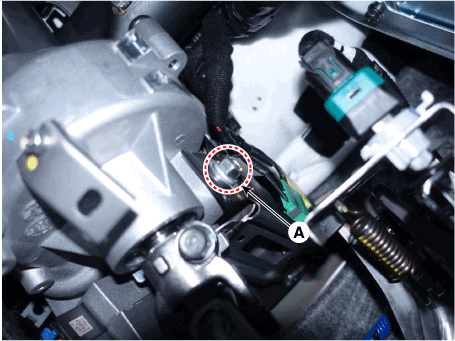

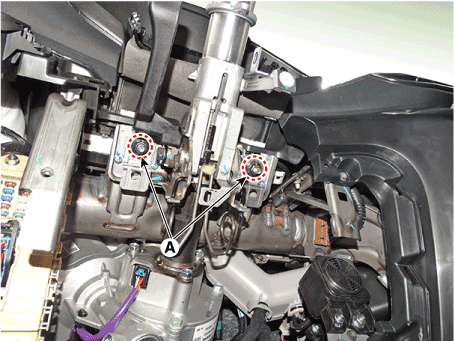

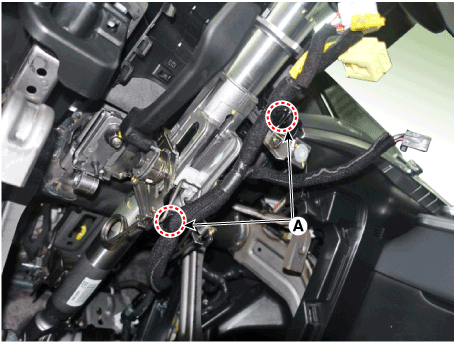

Loosen the mounting nut (A) and bolt (B) and leave the steering column and EPS unit assembly lie on the vehicle's floor.
Tightening torque
(A) : 25.0 - 29.4 N.m (2.5 - 3.0 kgf.m, 14.5 - 21.7 lb-ft)
(B) : 53.9 - 58.8 N.m (5.5 - 6.0 kgf.m, 39.8 - 43.4 lb-ft)

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

14.
Install in the reverser order of removal.
15.
Conduct the "EPS Type Recognition" by GDS.
(Refer to MDPS motor - "Diagnosis with GDS")
16.
Conduct the "ASP Calibration" by GDS.
(Refer to MDPS motor - "Diagnosis with GDS")
[R-MDPS]
1.
Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2.
Turn the steering wheel so that the front wheels are placed in the straight ahead position.
3.
Remove the driver airbag module.
(Refer to Restraint - "Driver Airbag (DAB) Module and Clock Spring")
4.
Remove the steering wheel.
(Referto Steering System - "Steering Wheel")
5.
Remove the clock spring.
(Refer to Restraint - "Driver Airbag (DAB) Module and Clock Spring")
6.
Remove the multifunction switch.
(Refer to Body Electrical System - "Multifunction switch")
7.
Remove the steering column shroud lower panel.
(Refer to Body - "Steering Column Shroud lower Panel")
8.
Remove the crash pad lower pannel.
(Refer to Body - "Crash Pad Lower Pannel")
9.
Remove the fixed clip (A) and then remove the wiring from the steering column.

Hyundai Palisade. Repair procedures

10.
Loosen the bolt (A) and then disconnect the universal joint assembly from the pinion of the steering gear box.
Tightening torque :
32.4 - 37.3 N.m (3.3 - 3.8 kgf.m, 23.9 - 27.5 lb-ft)

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures
Do not reuse the bolt.
Lock the steering wheel in the straight ahead position to prevent the damage of the clock spring inner cable.
Assemble so that the universal joint hole is inserted matching the cut surface of the pinion shaft.

Hyundai Palisade. Repair procedures

11.
Remove the stop lamp switch.
(Refer to Brake System - "Stop Lamp Switch")
12.

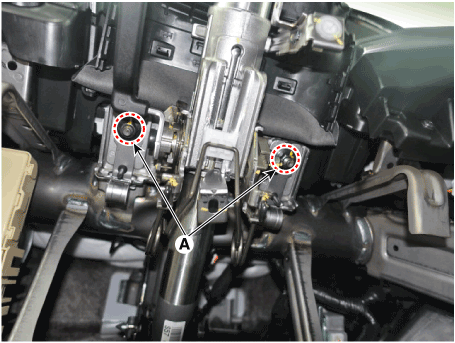

Remove the MDPS assembly by loosening the mounting nuts (A) and bolt (B).
Tightening torque
(A) : 25.0 - 29.4 N.m (2.5 - 3.0 kgf.m, 14.5 - 21.7 lb-ft)
(B) : 53.9 - 58.8 N.m (5.5 - 6.0 kgf.m, 39.8 - 43.4 lb-ft)

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

13.
Install in the reverser order of removal.
Disassembly
1.

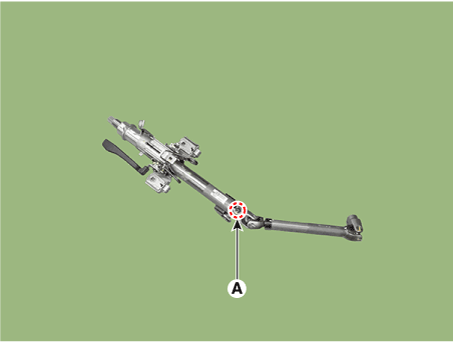

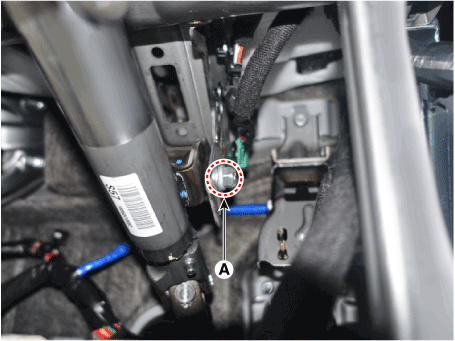

Loosen the bolt (A) and then disconnect the universal joint assembly from the steering column assembly.
Tightening torque :
49.0 - 58.8 N.m (5.0 - 6.0 kgf.m, 39.8 - 43.4 lb-ft)
[C-MDPS]

Hyundai Palisade. Repair procedures

[R-MDPS]

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures
Do not reuse the universal joint bolt.
2.
Reassembly is the reverse of the disassembly.
Hyundai Palisade. Repair procedures

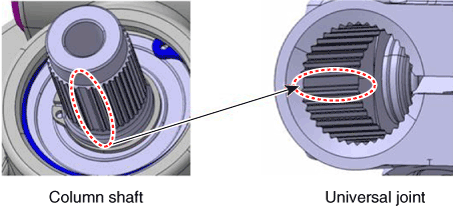

When assembling, match the gear teeth as the below illustration.

Hyundai Palisade. Repair procedures

Inspection
1.
Check the steering column for damage and deformation.
2.
Check the steering column for damage and deformation.
3.
Check the join bearing for damage and wear.
4.
Check the tilt bracket for damage and cracks.
5.
Check the key lock assembly for proper operation and replace it if necessary.
Diagnosis with GDS
EPS Type Recognition
Hyundai Palisade. Repair procedures
When missing the EPS Type Recognition, occure a problem with motor driven power steering performance.
EPS Type Recognition procedures
1.
Connect self-diagnosis connector(16pins) located in the lower of driver side crash pad to self-diagnosis device.
2.
Turn the self-diagnosis device after key is ON.
3.
Turn the steering wheel to straight ahead position.
4.

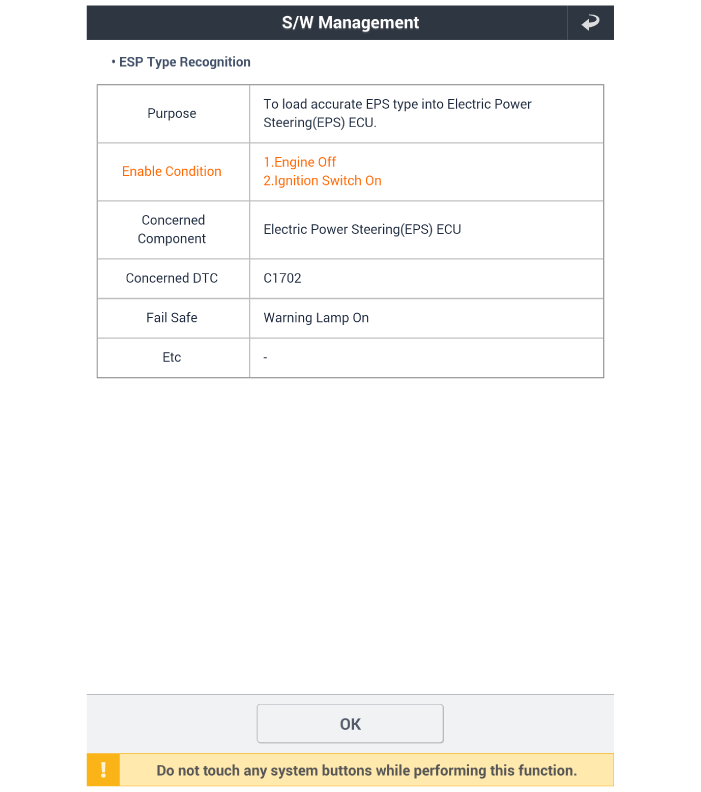

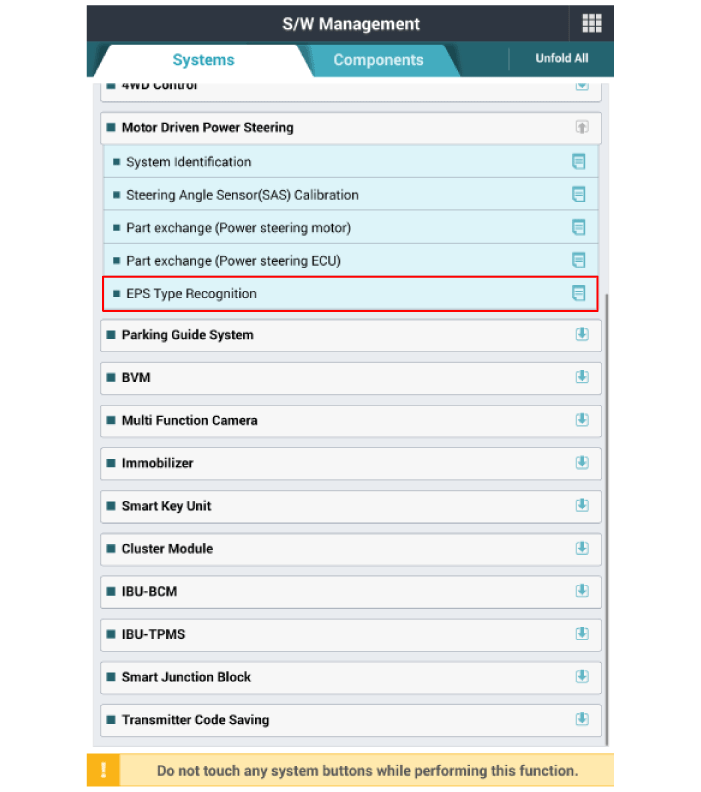

After Selecting the "vehicle model" and "system", select the "EPS Type Recognition" on GDS vehicle selection screen.

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

5.
Remove the DTC.
6.
Turn off the IG switch and wait for 20 seconds or more before starting the engine. And then make sure that MDPS works properly.
SAS Calibration
Steering-angle sensor detects the steering angle and steering angle speed. Steering angle and steering angle speed are used for steering wheel damping and return controls in addition to providing assistance torque.
Hyundai Palisade. Repair procedures
You can use a scan tool to (GDS) check if the battery voltage is proper before perform the "SAS Calibration".
Make sure that no connector engaged to the vehicle or scan tool is disconnected during the "SAS Calibration".
Once the "SAS Calibration" is complete, turn off the IG switch and wait for 10 seconds or more before starting the engine to check the operation.
SAS Calibration procedures
1.
Connect self - diagnosis connector (16pins) located in the lower of driver side crash pad to self - diagnosis device.
2.
Turn the self - diagnosis device after key is ON.
3.
Turn the steering wheel to straight ahead position.
4.

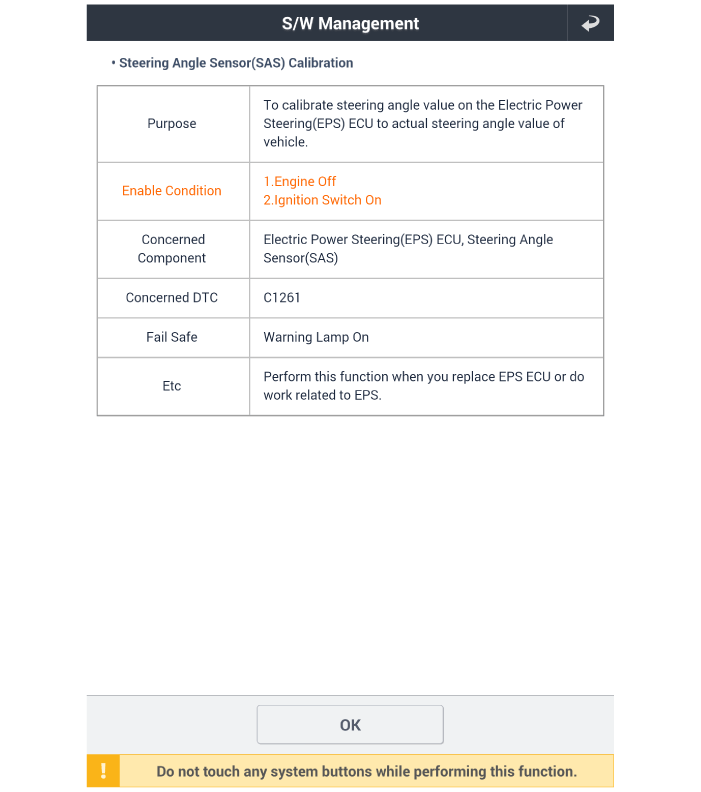

After Selecting the "vehicle model" and "system", select the "SAS Calibration" on GDS vehicle selection screen.

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

5.
Remove the DTC.
6.
Turn off the IG switch and wait for 10 seconds or more before starting the engine. And then make sure that MDPS works properly.
