Hyundai Palisade: Ignition System / Spark Plug

Hyundai Palisade (LX2) 2020-2024 Service Manual / Engine Electrical System / Ignition System / Spark Plug

Specifications
Specification
Item
Specification
Type
SILZKR7E11
Gap
1.0 - 1.1 mm
(0.0394 - 0.0433 in.)
Insulation resistance (MΩ)
10 or more

Description and operation
Description

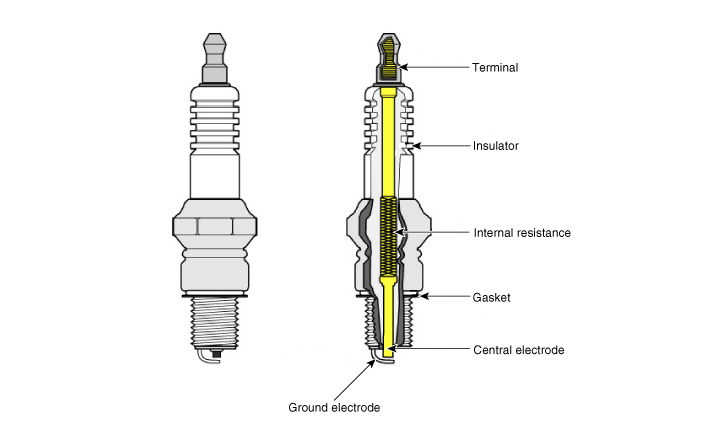

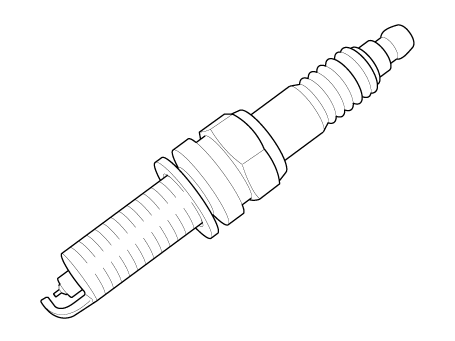

A spark plug is a device for delivering electric current from an ignition system to the combustion chamber of a spark-ignition engine to ignite the compressed fuel/air mixture therein by means of an electric spark, while containing combustion pressure within the engine. A spark plug has a metal threaded shell, electrically isolated from a central electrode by a porcelain insulator.

Hyundai Palisade. Description and operation

Hyundai Palisade. Description and operation
