Hyundai Palisade: Interior features / Side Curtain

To use the side curtain:
1. Lift the curtain by the curtain knob
(1).
2. Hang the curtain on both sides of
the hook.
CAUTION
- Always hang both sides of the
curtain on the hook. This
could cause damage to the
side curtain if only one side of
the curtain is hooked.
- Do not let any foreign material
get in between the vehicle and
side curtain. The side curtain
may not be lifted up.
- Do not hang other objects
except the side curtain.
- When using the side curtain
and turning it back into place,
pulling the curtain or applying
force may cause damage to
the side curtain. When lowering
the curtain, be sure to
place the curtain knob downward
in that state and slowly
return it to the position.

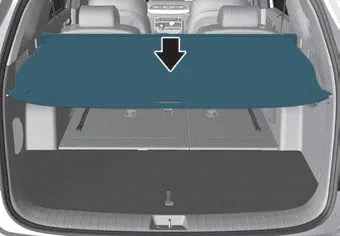

Use the cargo security screen to
cover items stored in the cargo area.

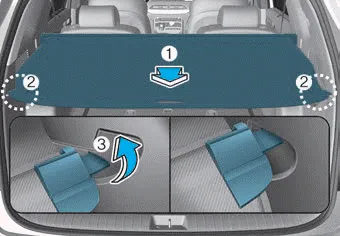

To use the cargo security screen
1. Pull the cargo security screen
towards the rear of the vehicle by
the handle (1)...
Roof Side Rails
If your vehicle comes equipped with
roof side rails, then roof rack crossbars
can be installed on top of your
vehicle.
The roof rack crossbars are an
accessory and are available at your
local HYUNDAI dealer...
Other information:
Components and components location
Components
IMS input/output pin information
No
Connector A
Connector B
Connector C
1
Cushion extension moter (Front)
B+ (Power)
Seat slide motor switch (Front)
2
Seat recline motor (Front)
Ground (Power)
Seat recline switch (Front)
3
Seat height motor (Up)
B+ (Power)
Seat tilt switch (Up)
4
Seat slide motor(Front)
-
Seat height switch (Up)
5
Seat Cushion extension moter (Rear)
Ground
Seat cushion extension switch (Front)
6
Seat recline motor (Rear)
B_CAN (High)
7
Seat tilt motor (Up)
B_CAN (Low)
8
Seat tilt motor (Down)
Lumber motor (Up)
9
Seat height motor (Down)
Lumber motor (Down)
10
Seat slide motor (Rear)
Seat slide sensor
11
Seat tilt sensor
12
-
13
Seat position sensor power
14
IGN 1
15
Seat slide switch (Rear)
16
Seat recline switch (Rear)
17
Seat tilt switch (Down)
18
Seat height switch (Down)
19
Seat cushion extension switch (Rear)
20
Ground
21
Lumber motor (Low)
22
IMS switch 2
23
-
24
Seat recline sensor
25
Seat height sensor
26
-
27
-
28
Battery (+)
Repair procedures
Removal
1...
If the battery has been discharged or
disconnected, or if the power liftgate
fuse has been replaced or removed,
reset the power liftgate by performing
the following procedure:
1. Press the P (Parking) button.
2. Press the power liftgate inner button
and the power liftgate outer
handle button simultaneously for
more than 3 seconds...
