Hyundai Palisade: Seat Belt Pretensioner / Seat Belt Pretensioner (BPT)

Hyundai Palisade (LX2) 2020-2024 Service Manual / Restraint / Seat Belt Pretensioner / Seat Belt Pretensioner (BPT)

Components and components location
Components

Hyundai Palisade. Components and components location

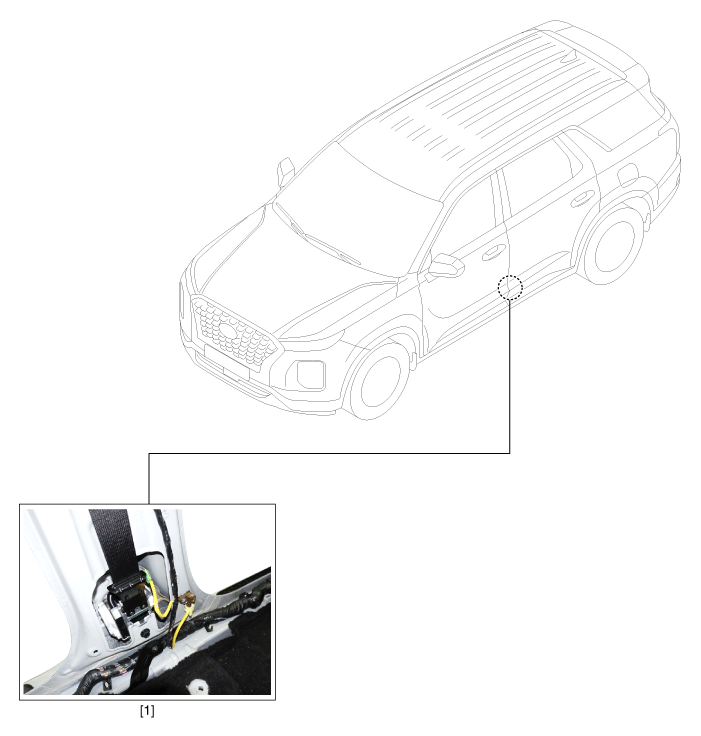

1. Front Seat Belt Pretensioner (BPT)


Description and operation
Description
The Seat Belt Pretensioners (BPT) are installed inside center pillar (LH & RH). When a vehicle crashes with a certain degree of frontal impact, the pretensioner seat belt helps to reduce the severity of injury to the front seat occupants by retracting the seat belt webbing. This prevents the front occupants from thrusting forward and hitting the steering wheel or the instrument panel when the vehicle crashes.
Hyundai Palisade. Description and operation
Never attempt to measure the circuit resistance of the Seat Belt Pretensioner (BPT) even if you are using a specified tester. If the circuit resistance is measured with a tester, the pretensioner will be ignited accidentally. This will result in serious personal injury.
Repair procedures
Removal
1.
Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
2.
Remove the center pillar lower trim.
(Refer to Body - "Center Pillar Trim")
3.
Remove the center pillar upper trim.
(Refer to Body - "Center Pillar Trim")
4.

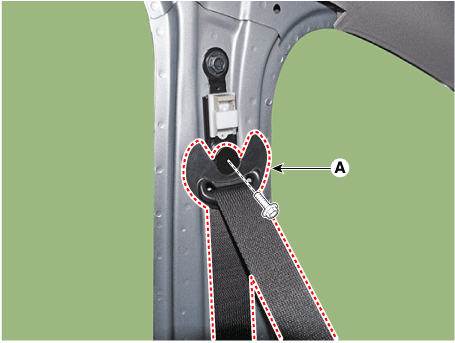

After loosening the mounting bolt, then remove the front seat belt lower anchor (A).

Hyundai Palisade. Repair procedures

5.

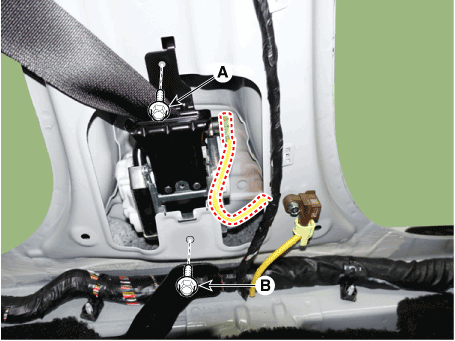

Disconnect the seat belt pretensioner connector and then remove the seat belt pretensioner after loosening mouning bolts (A) & (B).

Hyundai Palisade. Repair procedures

Installation
1.
Disconnect the battery negative cable and wait for at least three minutes.
2.
Install the seat belt pretensioner.
Tightening torque
Bolt (A) : 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
Bolt (B) :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

Hyundai Palisade. Repair procedures

3.
Install the front seat belt upper anchor bolt.
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

Hyundai Palisade. Repair procedures

4.
Install the center pillar trim.
(Refer to Body - "Center Fillar Trim")
5.
Install the door scuff trim.
(Refer to Body - "Door Scuff Trim")
6.
Reconnect the battery negative cable.
7.
After installing the seat belt pretensioner, confirm proper system operation:
Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.

    Seat Belt Pretensioner

    ..
