Hyundai Palisade: Integrated Body Control Unit (IBU) / Schematic diagrams

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body Electrical System / Integrated Body Control Unit (IBU) / Schematic diagrams

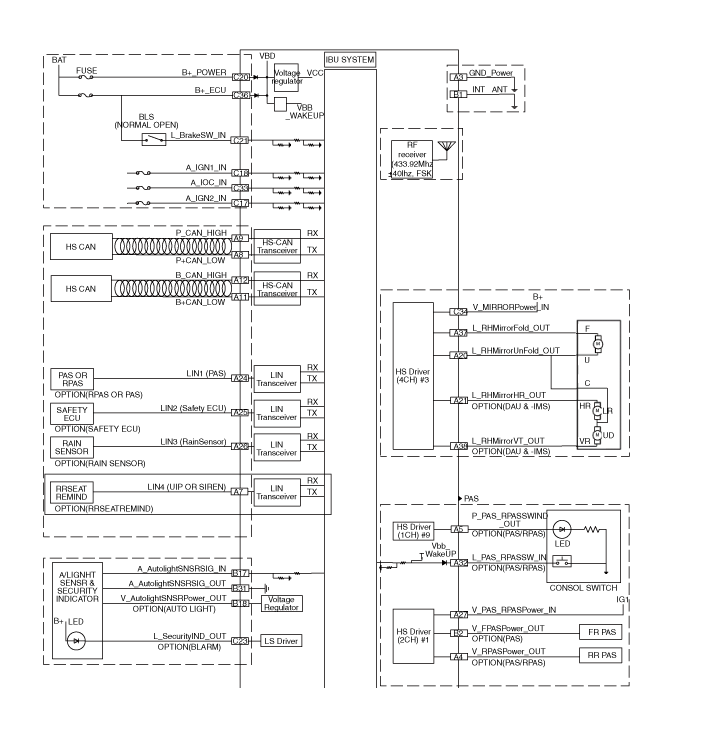

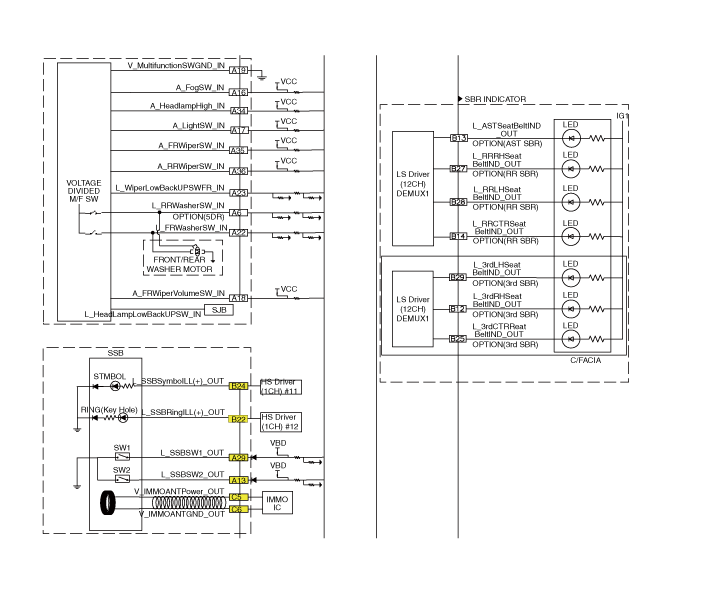

Circuit Diagram

Hyundai Palisade. Schematic diagrams

Hyundai Palisade. Schematic diagrams

    Components and components location

    ..

    Description and operation

    Description Body Control Module Controls The Followings – Wiper & Washer Control – Defroster Control – Driving Control – Tailgate Control – Window Control – Interior Control – Exterior Control – Panic alarm Control – MTS – Flasher output Control – Door lock/unlock Control – Burglar alarm Control – Remote start Control – UMS(User Mode Setting) Control – Gateway/ Diagnosis Integrated Body Control Unit (IBU) Integrated body control unit has integrated several functions including body control module (IBU), smart key unit (SMK), and tire pressure monitoring system (TPMS)...
