Removal
Hyundai Palisade. Repair procedures
•
Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "Lift and Support Points")
[EPB Switch]
1.
Turn ignition switch off and disconnect the battery (-) cable from the battery.
2.
Remove the crash pad lower pannel.
(Refer to Body - " Crash Pad Lower Pannel")
3.

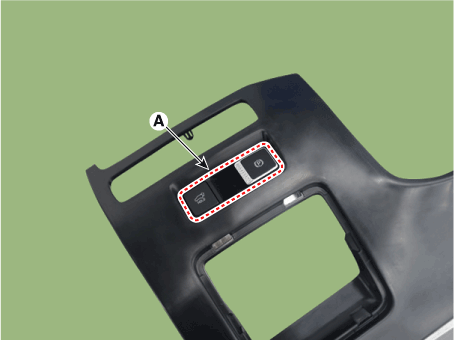

Loosen the guide screw and then removing the EPB switch (A).

Hyundai Palisade. Repair procedures
[EPB Actuator]
1.
Turn ignition switch off and disconnect the battery (-) cable from the battery.
2.
Remove the rear wheel and tire.
3.
Remove the EPB actuator from rear caliper.
(Refer to Brake System - "Rear Disc Brake")

    Circuit Diagram Terminal Function Pin No Fuction Pin No Fuction 6 Electrical parking brake signal 1 2 Rear right EPB motor power 7 Electrical parking brake signal 2 3 Rear right EPB motor ground 8 Electrical parking brake signal 3 12 Rear left EPB motor ground 9 Electrical parking brake signal 4 13 Rear left EPB motor power
