Hyundai Palisade (LX2): Parking Brake System / Schematic diagrams

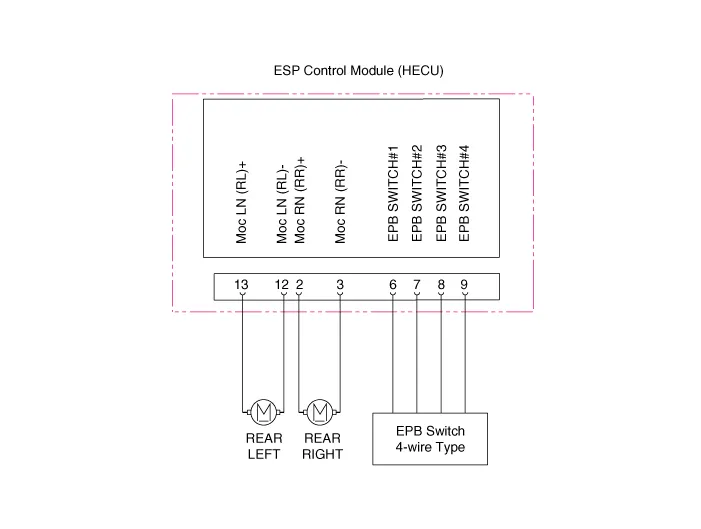

| Circuit Diagram |

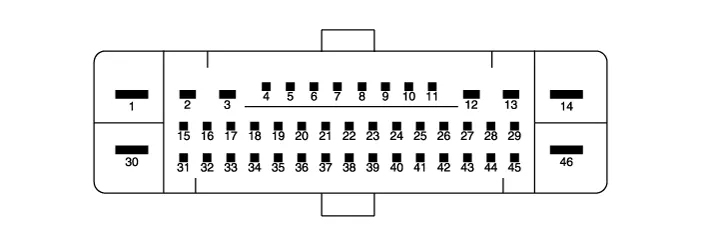

| Terminal Function |
|
Pin No |
Fuction |
Pin No |
Fuction |
|
6 |
Electrical parking brake signal 1 |
2 |
Rear right EPB motor power |
|
7 |
Electrical parking brake signal 2 |
3 |
Rear right EPB motor ground |
|
8 |
Electrical parking brake signal 3 |
12 |
Rear left EPB motor ground |
|
9 |
Electrical parking brake signal 4 |
13 |
Rear left EPB motor power |
Components 1. ESP Control Module (HECU) 2. EPB switch 3. Electronic Parking Brake (EPB) actuator
Removal • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
