Hyundai Palisade: Rear View Monitor (RVM) / Repair procedures

Hyundai Palisade (LX2) 2020-2025 Service Manual / Advanced Driver Assistance System (ADAS) / Rear View Monitor (RVM) / Repair procedures

Removal
SVM Rear Camera
Hyundai Palisade. Repair procedures
•
In case of bad quality or poor focus, be sure to check the camera lense surface condition and foreign materials.
1.
Disconnect the negative (-) battery terminal.
2.
Remove the tailgate trim.
(Refer to Body - "Tailgate Trim")
3.
Remove the tailgate back panel.
(Refer to Body - "Tailgate Back Panel")
4.

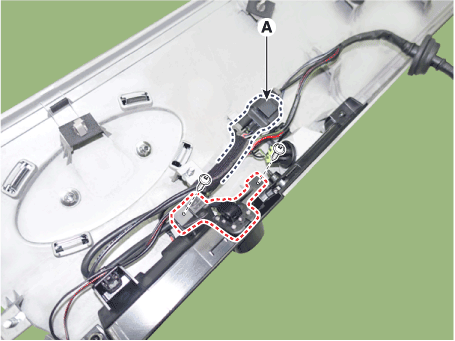

Disconnect the camera connector (A) and remove the rear view camera after loosening mounting screws.

Hyundai Palisade. Repair procedures
Installation
1.
To install, reverse the removal procedure.

    Description and operation

    Description Rear view camera will activate when the backup light is ON with the ignition switch ON and the shift lever in the R position...
