Hyundai Palisade: Rear Mode Control Actuato / Repair procedures

Hyundai Palisade (LX2) 2020-2025 Service Manual / Heating,Ventilation And Air Conditioning / Rear Mode Control Actuato / Repair procedures

Replacement
1.
Disconnect the negative (-) battery terminal.
2.
Remove the luggage side trim
(Refer to Body - "Luggage Side Trim ")
3.

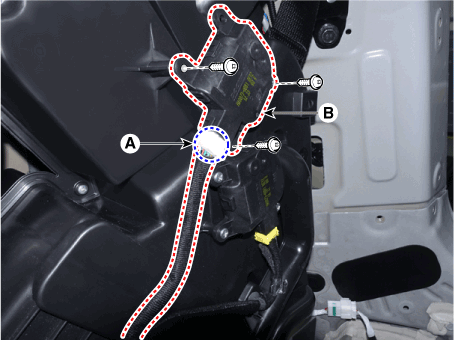

Separate the rear mode actuator connector (A), loosen the mounting screws and remove the rear mode actuator (B).

Hyundai Palisade. Repair procedures

4.
Install in the reverse order of removal.
Hyundai Palisade. Repair procedures
Make sure the connector is connected in properly.
