Hyundai Palisade: Daytime Running Lights / Repair procedures

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body Electrical System / Daytime Running Lights / Repair procedures

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front bumper.
(Refer tor Body - "Front Bumper")
3.

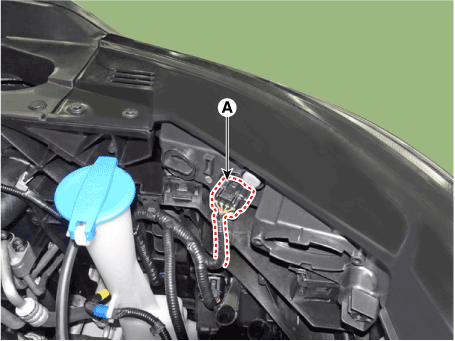

Disconnect the DRL connector (A).

Hyundai Palisade. Repair procedures

4.
Remove the DRL from the vehicle.

Hyundai Palisade. Repair procedures

Installation
1.
Install the DRL.
2.
Install the front bumper.
3.
Connect the negative (-) battery terminal.
