Hyundai Palisade. Releasing the parking brake

To release the EPB (Electronic Parking Brake):

  • Place the ignition switch in the ON position.
  • Depress and hold the brake pedal.

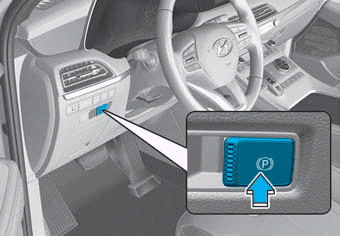

  • Press the EPB switch.

Make sure the Parking Brake Warning Light goes off.

Information

  • For your safety, you can engage the EPB even though the ignition switch is in the OFF position, but you cannot release it.
  • For your safety, depress the brake pedal and release the parking brake manually with the EPB switch when you drive downhill or when backing up the vehicle.

NOTICE

  • If the parking brake warning light is still on even though the EPB has been released, have the system checked by an authorized HYUNDAI dealer.
  • Do not drive your vehicle with the EPB applied. It may cause excessive brake pad and brake rotor wear.

EPB (Electronic Parking Brake) may be automatically applied when:

  • Requested by other systems
  • The driver turns the engine off while Auto Hold is operating.
