Hyundai Palisade: Interior Trim / Rear Pillar Trim

Hyundai Palisade (LX2) 2020-2024 Service Manual / Body (Interior and Exterior) / Interior Trim / Rear Pillar Trim

Components and components location

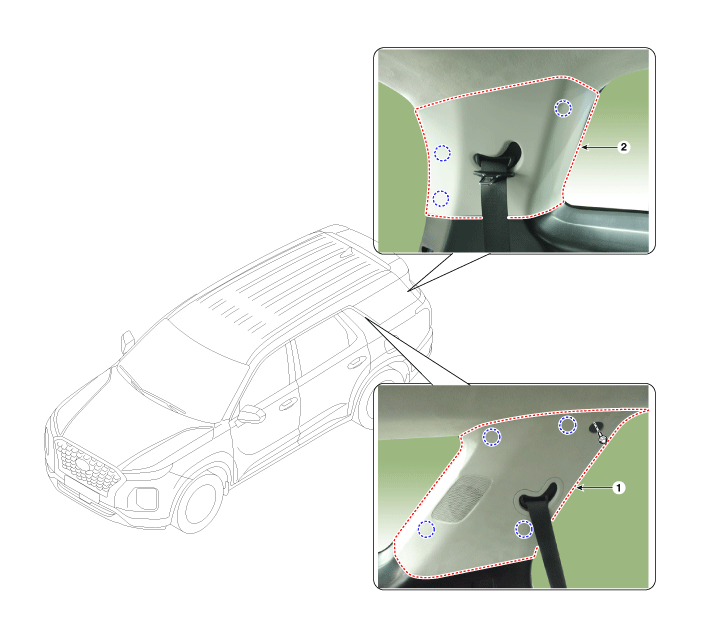

Component Location

Hyundai Palisade. Components and components location

1. Rear pillar trim
2. Tailgate fillar trim

Repair procedures
Replacement
[Rear pillar trim]
Hyundai Palisade. Repair procedures
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.
Hyundai Palisade. Repair procedures
Take care not to bend or scratch the trim and panels.
1.
Remove the rear door body side weatherstrip.
2.

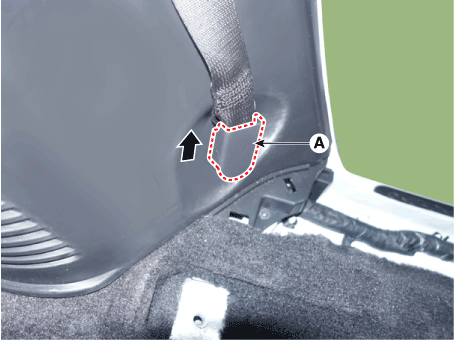

Open the two-row seat belt lower cover (A) and loosen the mounting bolts.

Hyundai Palisade. Repair procedures

3.

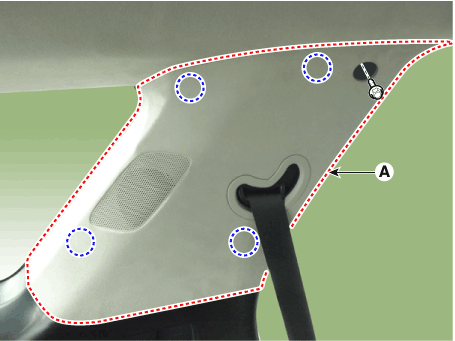

Loosen the mounting bolt and remove the rear pillar trim (A).

Hyundai Palisade. Repair procedures

4.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
Replace any damaged clips (or pin-type retainers).
[Tailgate fillar trim]
Hyundai Palisade. Repair procedures
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.
Hyundai Palisade. Repair procedures
Take care not to bend or scratch the trim and panels.
1.
Remove the third-row seat assembly.
(Refer to Rear Seat -"Rear seat assembly)
2.
Remove the tailgate weatherstrip.
3.

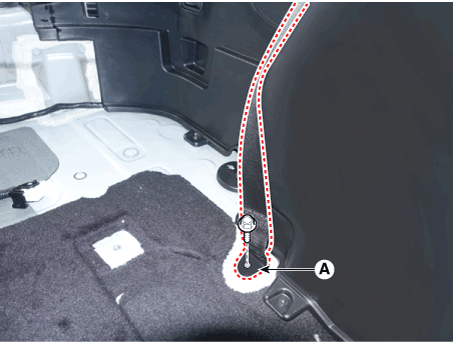

Loosen the 3-row seat belt mounting bolt (A).

Hyundai Palisade. Repair procedures

4.

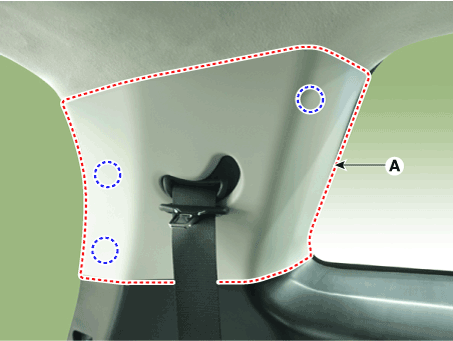

Remove the tailgate pillar trim (A).

Hyundai Palisade. Repair procedures

5.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
Replace any damaged clips (or pin-type retainers).
