Hyundai Palisade: Interior Trim / Luggage Side Trim

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body (Interior and Exterior) / Interior Trim / Luggage Side Trim

Components and components location

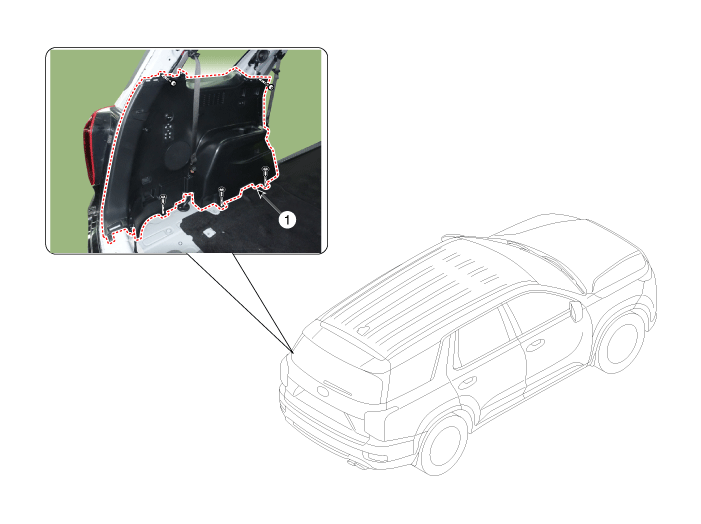

Component Location

Hyundai Palisade. Components and components location

1. Luggage side trim


Repair procedures
Replacement
Hyundai Palisade. Repair procedures
•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
Hyundai Palisade. Repair procedures
•
Take care not to bend or scratch the trim and panels.
1.
Remove the third row seat assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
2.
Remove the rear door body side weatherstrip.
(Refer to Rear Door - "Rear Door Body Side Weatherstrip")
3.
Remove the tailgate weatherstrip.
(Refer To Tailgate - "Tailgate Weatherstrip")
4.
Remove the rear door scuff trim.
(Refer to Interior Trim - "Door Scuff Trim")
5.
Remove the rear pillar trim.
(Refer to Interior Trim - "Rear Pillar Trim")
6.
Remove the tailgate pillar trim.
(Refer to Interior Trim - "Rear Pillar Trim")
7.
Remove the Rear transverse trim.
(Refer to Interior Trim - "Rear Transverse Trim")
8.
Push the second row seat towards the front of the vehicle as far as possible.
9.
Loosen the mounting screws and remove the luggage side trim (A).

Hyundai Palisade. Repair procedures
10.

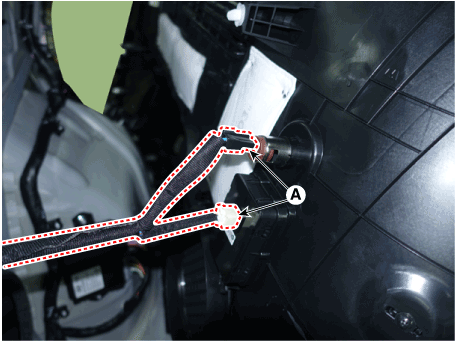

Press the lock pin and separate the various connectors (A).

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures
11.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Replace any damaged clips (or pin-type retainers).
•
Make sure the connector are connected in properly.
