Hyundai Palisade: Seat Belt Warning Light / Rear passenger's seat belt warning

Hyundai Palisade (LX2) 2020-2024 Owner's Manual / Safety System of Your Vehicle / Seat Belts / Seat Belt Warning Light / Rear passenger's seat belt warning

Hyundai Palisade. warning

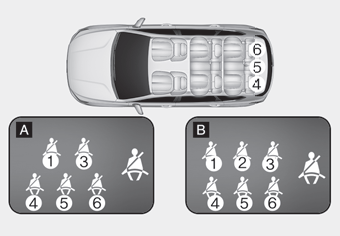

❈ 7 passengers (A)
- 2nd row : 1, 3
- 3rd row : 4, 5, 6

❈ 8 passengers (B)
- 2nd row : 1, 2, 3
- 3rd row : 4, 5, 6

As a reminder to the rear passenger, the rear passenger's seat belt warning lights will illuminate for approximately 6 seconds each time you turn the ignition switch ON regardless of belt fastening.

If the seat belt is not fastened when the ignition switch is turned ON or if it is disconnected after the ignition switch is turned ON, the seat belt warning light will illuminate until the belt is fastened.

If you start to drive without the seat belt fastened or you unfasten the seat belt when you drive under 12 mph (20 km/h), the corresponding warning light will continue to illuminate until you fasten the seat belt.

If you continue to drive without the seat belt fastened or you unfasten the seat belt when you drive over 12 mph (20 km/h), the seat belt warning chime will sound for approximately 35 seconds and the corresponding warning light will blink.

WARNING

Riding in an improper position adversely affects the rear passenger's seat belt warning system.

It is important for the driver to instruct the passenger to properly be seated as instructed in this manual.

Information

  • Although the rear passenger's seat is not occupied, the seat belt warning light will blink or illuminate for 6 seconds.
  • The rear passenger's seat belt warning may operate when luggage, laptop or other electronic device is placed on the rear passenger seat.
