Hyundai Palisade: Light bulbs / Rear combination lamp light replacement

Hyundai Palisade (LX2) 2020-2024 Owner's Manual / Maintenance / Light bulbs / Rear combination lamp light replacement

Hyundai Palisade. replacement

■ Type A (Standard)

Hyundai Palisade. replacement

■ Type B (LED)

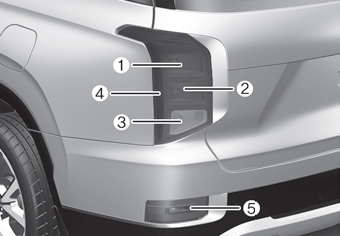

■ Type A

(1) Tail lamp
(2) Tail/Stop lamp
(3) Turn signal lamp
(4) Side marker lamp
(5) Backup lamp

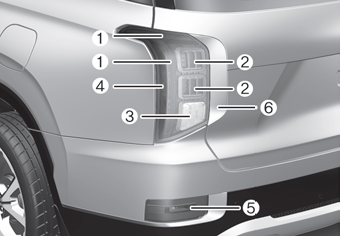

■ Type B

(1) Tail lamp, Side marker
(2) Stop lamp
(3) Turn signal lamp
(4) Side marker lamp
(5) Backup lamp
(6) Garnish lamp

Stop/Tail lamp and turn signal lamp (Type A)

Hyundai Palisade. replacement

1. Turn off the engine.

2. Open the liftgate.

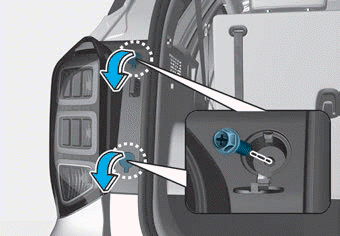

3. Loosen the lamp assembly retaining screws with a cross-tip screwdriver.

4. Remove the rear combination lamp assembly from the body of the vehicle.

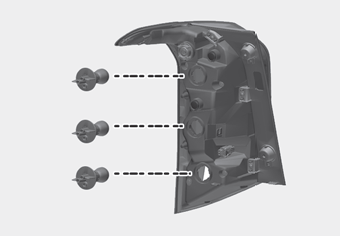

5. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

Hyundai Palisade. replacement

6. Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.

7. Insert a new bulb by inserting it into the socket and rotating it until it locks into place.

8. Install the socket into the assembly by aligning the tabs on the socket with the slots in the assembly. Push the socket into the assembly and turn the socket clockwise.

9. Reinstall the lamp assembly to the body of the vehicle.

Side maker lamp (Type A,B), tail/stop lamp, turn signal lamp (Type B), garnish lamp

If the LED lamp does not operate, have the system checked by an authorized HYUNDAI dealer.

The LED lamps cannot replaced as a single unit because it is an integrated unit. The LED lamps has to be replaced with the unit.

A skilled technician should check or repair the LED lamp, for it may damage related parts of the vehicle.

Back up lamp

If the light bulb does not operate, have the vehicle checked by an authorized HYUNDI dealer.

    Side Repeater Lamp Replacement

    If the LED lamp (1) does not operate, have the system checked by an authorized HYUNDAI dealer. The LED lamps cannot be replaced as a single unit because it is an integrated unit...

    High Mounted Stop Lamp Bulb Replacement

    If the LED lamp (1) does not operate, have the system checked by an authorized HYUNDAI dealer. The LED lamps cannot be replaced as a single unit because it is an integrated unit...
