Hyundai Palisade (LX2): Manual Temperature Control Mode / Air conditioning, OFF mode, Rear climate control button
Air conditioning (7)
Push the A/C button to manually turn the system on (indicator light will illuminate) and off.
OFF mode (5)
Push the OFF button to turn the climate control system off. You can still operate the mode and air intake buttons as long as the ignition switch is in the ON position.
Rear climate control button
If you press the rear climate control button, rear passengers can control the rear climate system.
The fan speed can be set as desired by pushing the fan speed control button. More air is delivered with higher fan speeds. Pressing the OFF button turns off the fan.

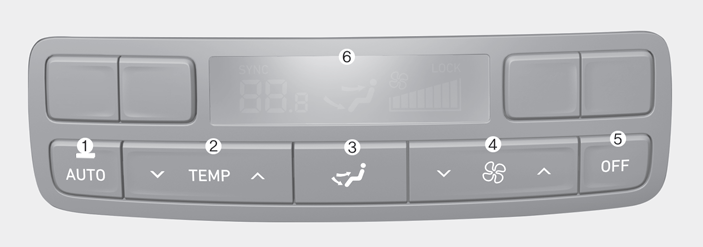

â– 2nd row air conditioning control 1. AUTO button 2. Temperature control button 3. Mode selection button 4. Fan speed control button 5. OFF button 6.
