Hyundai Palisade: Manual climate control system / Rear climate control

Hyundai Palisade (LX2) 2020-2024 Owner's Manual / Convenient Features of Your Vehicle / Manual climate control system / Rear climate control

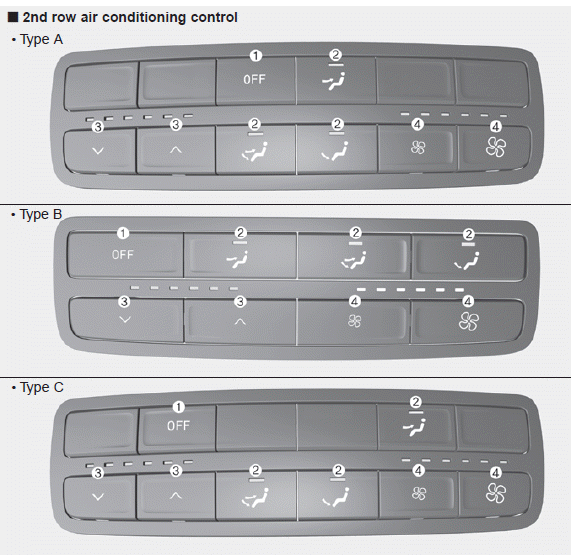

Hyundai Palisade. Rear climate control

1. OFF button
2. Mode selection button
3. Temperature control button
4. Fan speed control button

If you press the rear climate control button of the front climate control system, rear passengers can control the rear climate system by using the rear climate control system.

Fan speed control

Hyundai Palisade. Rear climate control

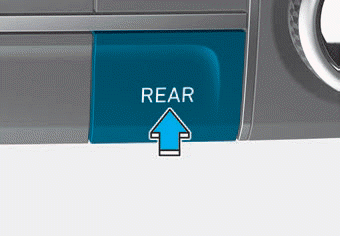

1. Press the rear climate control button of the front climate control system.

Hyundai Palisade. Rear climate control

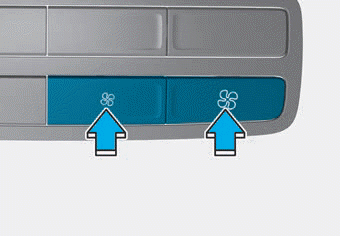

2. The fan speed can be set to the desired speed by pushing the fan speed control button. The higher the fan speed is, the more air is delivered.

Pressing the OFF button turns off the fan.

Temperature control

1. Press the rear climate control button of the front climate control system.

Hyundai Palisade. Rear climate control

2. To turn off the 3rd row air conditioning control system, press the 3rd row air conditioning ON/OFF button once more located on the front climate control panel or set the fan speed to the OFF position with the 3rd row fan speed switch (indicator light on the ON/OFF button is not illuminated).

OFF mode

Hyundai Palisade. Rear climate control

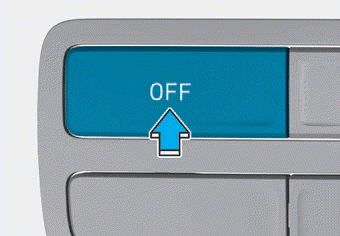

Push the OFF button to turn the rear climate control system off.

Mode selection

Hyundai Palisade. Rear climate control

You can select the direction of the air flow through the ventilation system.

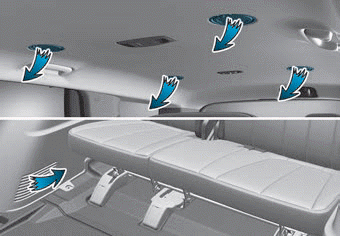

You can adjust the front climate control system for heating or cooling to passengers on 2nd row seats. The air flow is directed from the floor.

Hyundai Palisade. Rear climate control

: Air flow is directed toward the upper body from the rear headliner.

Hyundai Palisade. Rear climate control

: Air flow is directed toward the upper body and the floor.

Hyundai Palisade. Rear climate control

: Air flow is directed toward the floor.

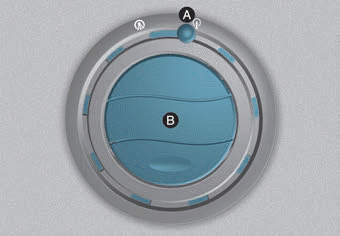

Rear vents on the headliner

Hyundai Palisade. Rear climate control

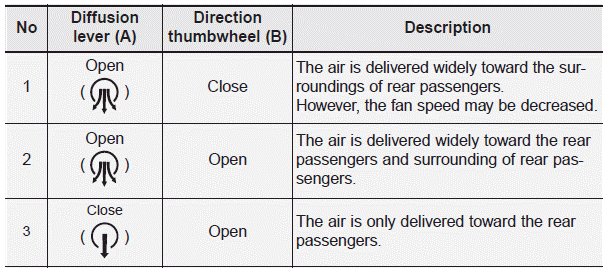

The rear passengers can adjust the direction of air flow from the rear vents on the headliner.

If you operate the rear climate control with rear vents closed, a noise may sound. When operating the rear climate control, open two or more rear vents.

Hyundai Palisade. Rear climate control
