Hyundai Palisade: Manual climate control system / Heating and Air Conditioning

Hyundai Palisade (LX2) 2020-2024 Owner's Manual / Convenient Features of Your Vehicle / Manual climate control system / Heating and Air Conditioning

1. Start the engine.

2. Set the mode to the desired position. To improve the effectiveness of heating and cooling, select the mode according to the following:

- Heating: Hyundai Palisade. Heating and Air Conditioning
- Cooling: Hyundai Palisade. Heating and Air Conditioning

3. Set the temperature control to the desired position.

4. Set the air intake control to Fresh mode or Recirculation mode position.

5. Set the fan speed control to the desired speed.

6. If air conditioning is desired, turn the air conditioning system on.

Mode selection

Hyundai Palisade. Heating and Air Conditioning

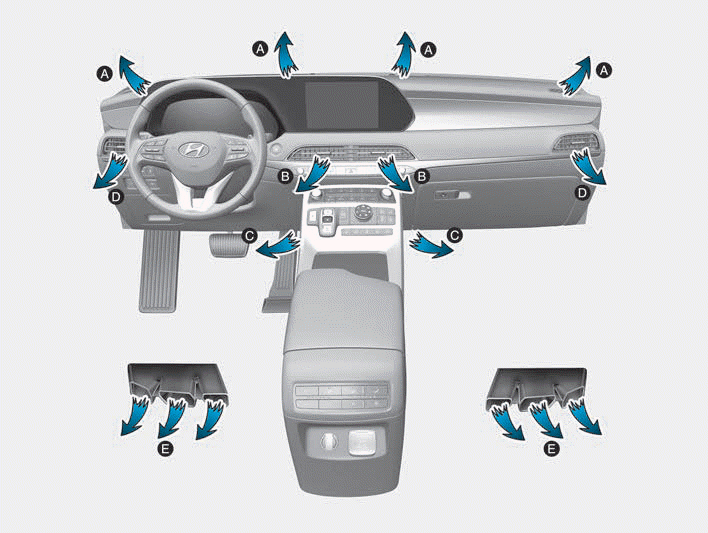

The mode selection button controls the direction of the air flow through the ventilation system. Air can be directed to the floor, dashboard outlets, or windshield. Five symbols are used to represent Face, Bi-Level, Floor, Floor- Defrost and Defrost air position.

Face-Level (B, D)

Hyundai Palisade. Heating and Air Conditioning

Air flow is directed toward the upper body and face. Additionally, each outlet can be controlled to direct the air discharged from the outlet.

Bi-Level (B, C, D, E)

Hyundai Palisade. Heating and Air Conditioning

Air flow is directed towards the face and the floor.

Floor-Level (A, C, D, E)

Hyundai Palisade. Heating and Air Conditioning

Most of the air flow is directed to the floor, with a small amount of the air being directed to the windshield and side window defrosters.

Floor & Defrost (A, C, D, E)

Hyundai Palisade. Heating and Air Conditioning

Most of the air flow is directed to the floor and the windshield with a small amount directed to the side window defrosters.

Hyundai Palisade. Heating and Air Conditioning

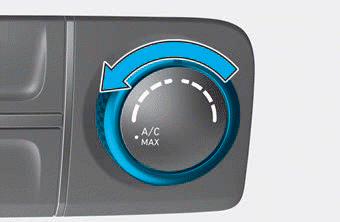

MAX A/C-Level (B, D)

The MAX A/C mode is used to cool the inside of the vehicle faster. Air flow is directed toward the upper body and face.

In this mode, the A/C button and the Recirculation mode button will be automatically selected. Turn the fan speed mode to adjust.

After the interior cabin has cooled sufficiently, move the temperature knob away from the MAX A/C setting and adjust the knob to the desired position.

If you wish to continue using A/C ON, make sure the A/C button LED is illuminated.

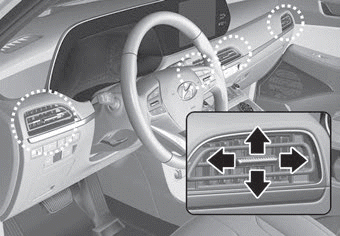

Instrument panel vents

Hyundai Palisade. Heating and Air Conditioning

The instrument panel vent air flow can be directed up/down or left/right using the vent adjustment lever.

The outlet vents can be opened or closed separately using the vent control lever. If you move the vent control lever to the left end, the outlet vents can be closed.

Temperature control (2)

The temperature will increase by turning the knob to the right.

The temperature will decrease by turning the knob to the left.

Air intake control

The air intake control button is used to select either Fresh mode (outside air) or Recirculation mode (cabin air).

Recirculation mode

Hyundai Palisade. Heating and Air Conditioning

When Recirculation mode is selected, air from the passenger compartment will be recirculated through the system and heated or cooled according to the function selected.

Fresh mode

Hyundai Palisade. Heating and Air Conditioning

When Fresh mode is selected, air enters the vehicle from outside and is heated or cooled according to the function selected.

Information

Operating the system primarily in Fresh mode is recommended. Use Recirculation mode temporarily only when needed.

Prolonged operation of the heater in Recirculation mode and without the A/C ON can cause fogging of the windshield.

In addition, prolonged use of the A/C ON in Recirculation mode may result in excessively dry, dehumidified air in the cabin and may promote formation of musty vent odor due to stagnant air.

WARNING

  • Continued use of the climate control system operation in Recirculation mode for a prolonged period of time may cause drowsiness to the occupants in the cabin. This may lead to loss of vehicle control which may lead to an accident.
  • Continued use of the climate control system operation in Recirculation mode with the A/C OFF may allow humidity to increase inside the cabin. This may cause condensation to accumulate on the windshield and obscure visibility.
  • Do not sleep in your vehicle or remain parked in your vehicle with the windows up and either the heater or the air conditioning ON for prolonged periods of time. Doing so may increase the levels of carbon dioxide in the cabin which may lead to serious injury or death.

Fan speed control (1)

Turn the knob to the right to increase the fan speed and airflow. Turn the knob to the left to decrease fan speed and airflow.

Setting the fan speed control knob to the "0" position turns off the fan.

NOTICE

Operating the fan speed when the ignition switch is in the ON position could cause the battery to discharge. Operate the fan speed when the engine is running.

Air conditioning (3)

Push the A/C button to turn the system on (indicator light will illuminate) and off.

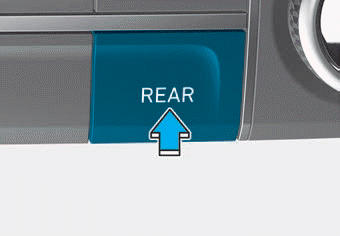

Rear climate control button

Hyundai Palisade. Heating and Air Conditioning

If you press the rear climate control button, rear passengers can control the rear climate system.

    Manual climate control system

    Front 1. Fan speed control knob 2. Temperature control knob 3. Air conditioning button 4. Mode selection button 5. Front windshield defroster button 6...

    Rear climate control

    1. OFF button 2. Mode selection button 3. Temperature control button 4. Fan speed control button If you press the rear climate control button of the front climate control system, rear passengers can control the rear climate system by using the rear climate control system...
