Hyundai Palisade: Air conditioning System / A/C Pressure Transducer

Hyundai Palisade (LX2) 2020-2024 Service Manual / Heating,Ventilation And Air Conditioning / Air conditioning System / A/C Pressure Transducer

Description and operation
Description

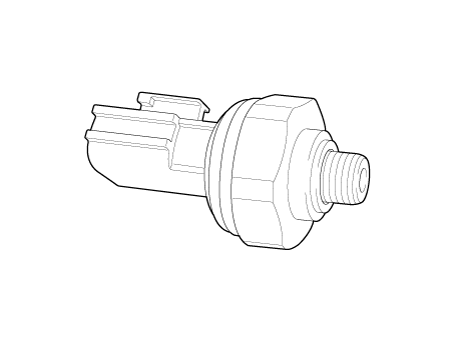

The A/C Pressure Transducer (APT) converts the pressure value of high pressure line into voltage value after measuring it. By converted voltage value, engine ECU controls the cooling fan by operating it high speed or low speed. Engine ECU stops the operation of the compressor when the temperature of refrigerant line is very high or very low irregularly to optimize air conditioning system.

Hyundai Palisade. Description and operation

Repair procedures
Inspection
Hyundai Palisade. Repair procedures
Before measuring the pressure of the refriferant line, check whether the refrigerant amount is charged in accordance with the specified charging amount.
(Refer to Heating, Ventilation, Air Conditioning - "Specifications")
1.
Turn the ignition switch OFF.
2.
Install the refrigerant recovery/recycling/charging system.
(Refer to Air Conditioning System - "Repair procedures")
3.
Turn ON the ignition switch, put into operation the air conditioner.
4.
Calculate the reference voltage of the Recovery/Recycle/Recharge machine high pressure value using the formula below.
Reference voltage (V) = 0.0088 * pressure(psi) + 0.37
5.

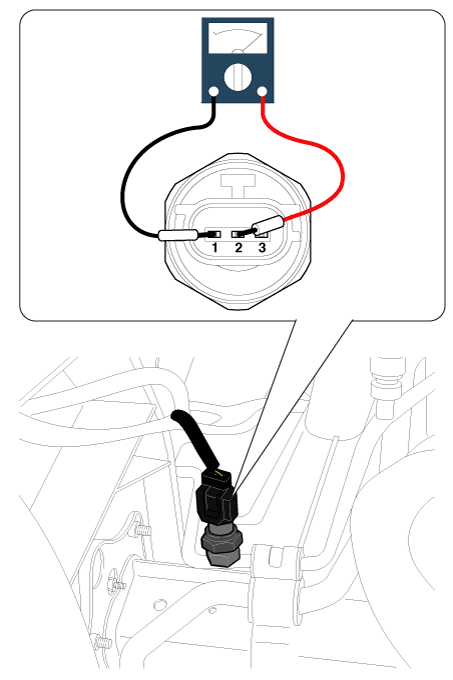

Measure the sensor output voltage between terminal "1" and "2".

Hyundai Palisade. Repair procedures

Pin No
Function
1
Ground
2
Voltage
3
Power (+5V)

6.
If the reference voltage value and the sensor output voltage value are close to each other, the air conditioner pressure transducer is normal.
7.
If 0V is output or the reference voltage value and sensor output voltage value are not close to each other, replace the air conditioner pressure transducer.
Hyundai Palisade. Repair procedures

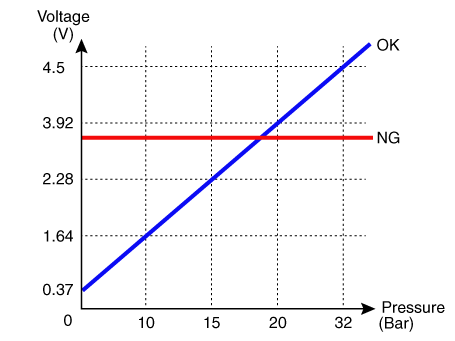

Check if the output voltage changes when the high pressure value of the refrigerant line changes.

Hyundai Palisade. Repair procedures

Replacement
1.
Disconnect the negative (-) battery terminal.
2.
Recover the refrigerant with a recovery/charging station.
3.

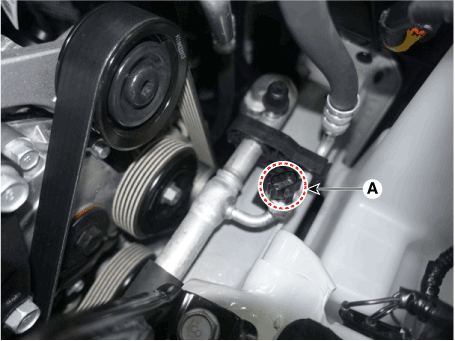

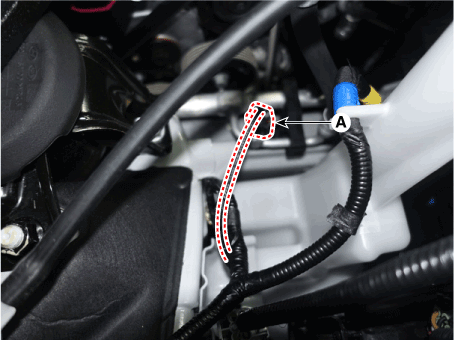

Disconnect the A/C pressure transducer connector (A).

Hyundai Palisade. Repair procedures

4.
Remove the A/C pressure transducer (A).
Tightening torque :
10 - 12 N.m (1.02 - 1.22 kgf.m, 7.4 - 8.8 lb-ft)

Hyundai Palisade. Repair procedures

5.
Install in the reverse order of removal.
Hyundai Palisade. Repair procedures
When installing, replace it with a new O-ring (A).
