Hyundai Palisade: Rear Seat Belt / Rear Center Seat Belt Retractor

Hyundai Palisade (LX2) 2020-2024 Service Manual / Body (Interior and Exterior) / Rear Seat Belt / Rear Center Seat Belt Retractor

Repair procedures
Replacement
Hyundai Palisade. Repair procedures
•
When installing the belt, make sure not to damage the retractor.
•
Put on gloves to prevent hand injuries.
1.
Remove the second row seat back cover[LH].
(Refer to Rear Seat -"Rear Seat Back Cover")
2.

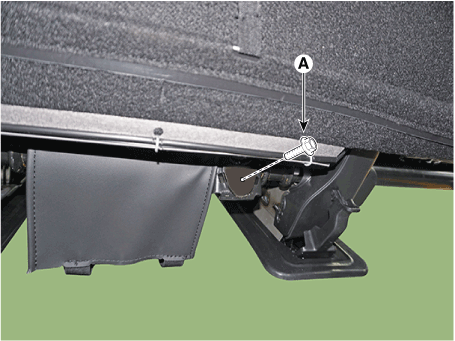

Loosen the rear center seat belt lower anchor mounting bolt (A) at the bottom of the second row seat cushion [LH].
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m , 28.9 - 39.8 lb-ft)

Hyundai Palisade. Repair procedures
3.

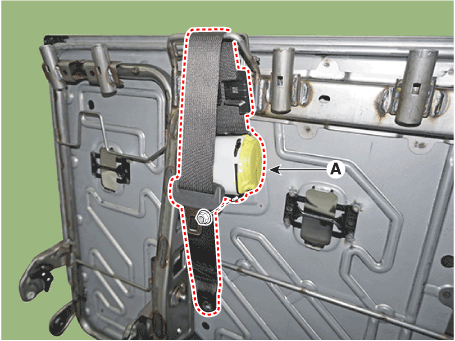

Loosen the mounting nut and remove the rear center seat belt retractor (A).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m , 28.9 - 39.8 lb-ft)

Hyundai Palisade. Repair procedures
4.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Replace any damaged clips (or pin-type retainers).

    Rear Seat Belt Retractor
