Hyundai Palisade: Power Tailgate Module / Power Tailgate Unit

Hyundai Palisade (LX2) 2020-2024 Service Manual / Body Electrical System / Power Tailgate Module / Power Tailgate Unit

Components and components location

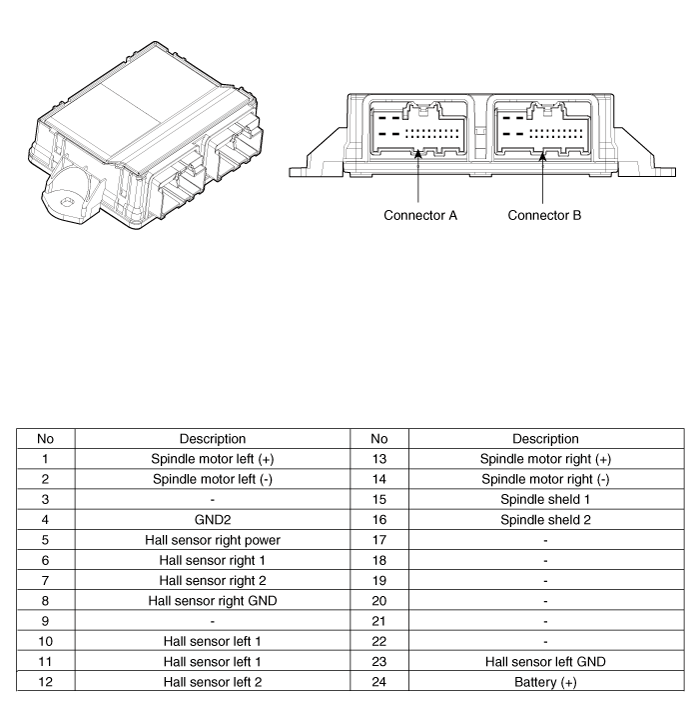

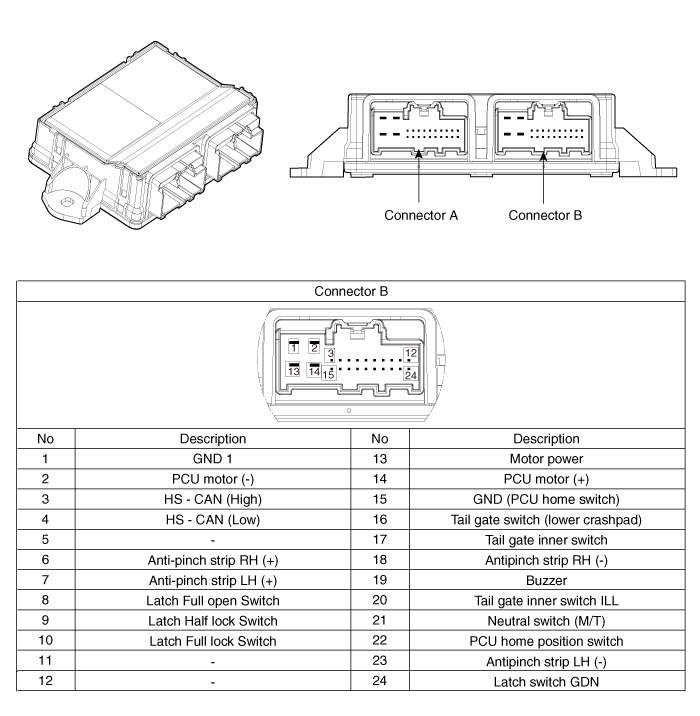

Components

Hyundai Palisade. Components and components location

Hyundai Palisade. Components and components location

Schematic diagrams

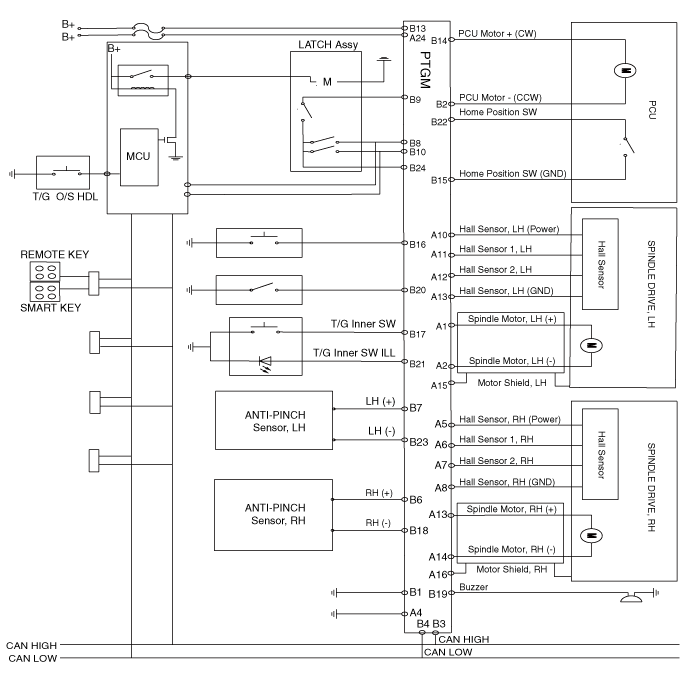

Circuit Diagram

Hyundai Palisade. Schematic diagrams

Repair procedures
Removal
Hyundai Palisade. Repair procedures
1)
After replacing with a new power tailgate module, check for DTC code at all times.
If DTC code B24B0 exists, perform power tailgate mode change.
(Refer to Power Tailgate Module - "Troubleshooting")
2)
After replacing with a new power tailgate module, perform the system initialization.
(Refer to Power Tailgate Module - "Troubleshooting")
3)
Before delivery to customer, operate the power tailgate to be sure that there is no warning sound.
1.
Disconnect the negative (-) battery terminal.
2.
Remove the rear left luggage side trim.
(Refer to Body - "Luggage Side Trim")

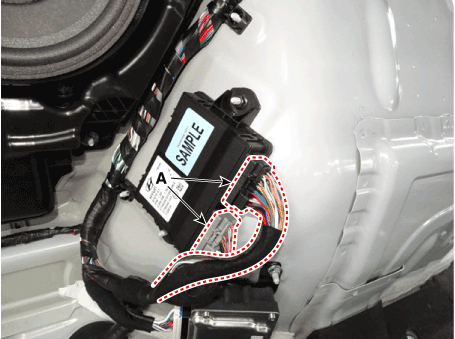

3.
Remove the power tailgate unit connectors (A).

Hyundai Palisade. Repair procedures

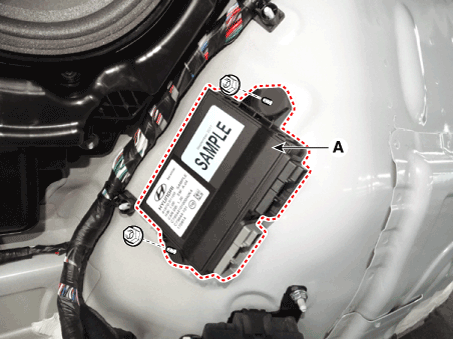

4.
Remove the power tailgate unit (A).

Hyundai Palisade. Repair procedures

Installation
1.
Install the power tailgate unit.
2.
Install the rear left luggage side trim.
3.
Connect the negative (-) battery terminal.
Inspection
Inspection of the Power Tailgate System
Refer to Power Tailgate System - "Troubleshooting"

    Troubleshooting

    Failure Inspection Diagnosis with Diagnostic tool 1. In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (Diagnostic tool)...

    Power Tailgate Latch

    Repair procedures Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the tailgate trim...
