Hyundai Palisade: Convenient Features of Your Vehicle / Option Menu (Cluster type C)

Hyundai Palisade (LX2) 2020-2024 Owner's Manual / Convenient Features of Your Vehicle / Option Menu (Cluster type C)

WARNING

While driving, please do not change the setting mode. It may distract your attention and cause the accident.

NOTICE

Displayed items of user's setting may differ from the content in this owner's manual since the contents vary with the vehicle’s technical specifications.

Hyundai Palisade. Option Menu (Cluster type C)

User settings mode

In this mode, you can change the settings of the instrument cluster, doors, lamps, etc.

1. Head-up display
2. Driver Assistance
3. Door
4. Lights
5. Sound
6. Convenience
7. Service interval
8. Other
9. Language
10. Reset

The information provided may differ depending on which functions are applicable to your vehicle.

Shift to P to edit settings

This warning message appears if you try to adjust the User Settings while driving.

For your safety, change the User Settings after parking the vehicle, applying the parking brake and shifting to P (Park).

Quick guide help

This mode provides quick guides for the systems in the User Settings mode.

Select an item, press and hold the OK button.

1. Head-Up Display

Hyundai Palisade. Option Menu (Cluster type C)

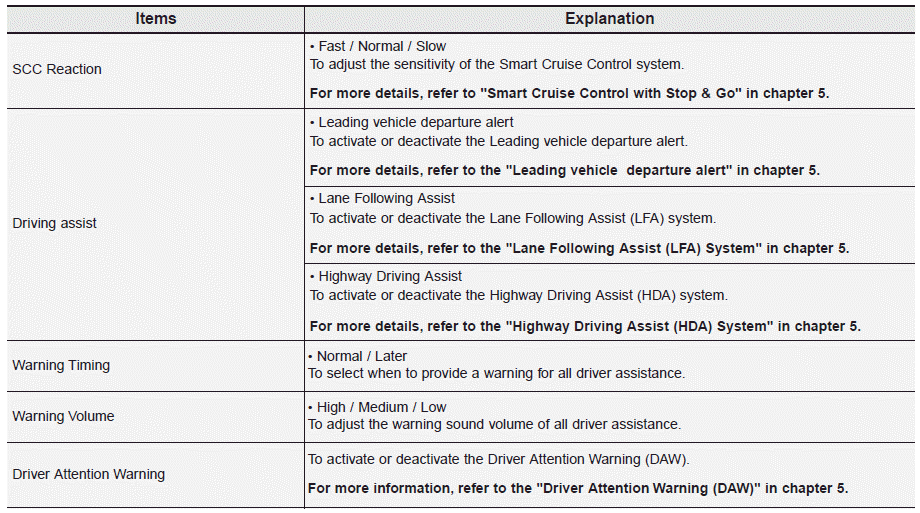

2. Driver Assistance

Hyundai Palisade. Option Menu (Cluster type C)

Hyundai Palisade. Option Menu (Cluster type C)

Hyundai Palisade. Option Menu (Cluster type C)

3. Door

Hyundai Palisade. Option Menu (Cluster type C)

Hyundai Palisade. Option Menu (Cluster type C)

4. Lights

Hyundai Palisade. Option Menu (Cluster type C)

5. Sound

Hyundai Palisade. Option Menu (Cluster type C)

6. Convenience

Hyundai Palisade. Option Menu (Cluster type C)

Hyundai Palisade. Option Menu (Cluster type C)

7. Service interval

Hyundai Palisade. Option Menu (Cluster type C)

If the service interval is activated and the time and distance is adjusted, messages are displayed in the following situations each time the vehicle is turned on.

- Service in: Displayed to inform the driver the remaining mileage and days to service.
- Service required: Displayed when the mileage and days to service has been reached or passed.

Information

If any of the following conditions occur, the mileage and number of days to service may be incorrect.

- The battery cable is disconnected.
- The fuse switch is turned off.
- The battery is discharged.

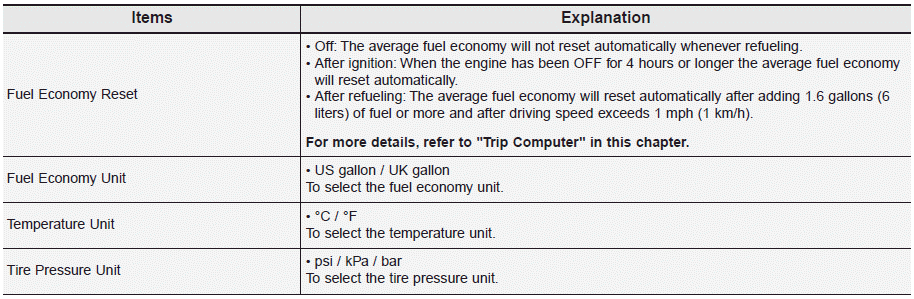

8. Other

Hyundai Palisade. Option Menu (Cluster type C)

9. Language

Hyundai Palisade. Option Menu (Cluster type C)

10. Reset

Hyundai Palisade. Option Menu (Cluster type C)

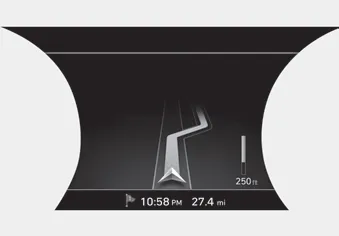

    LCD Display (Cluster type C)

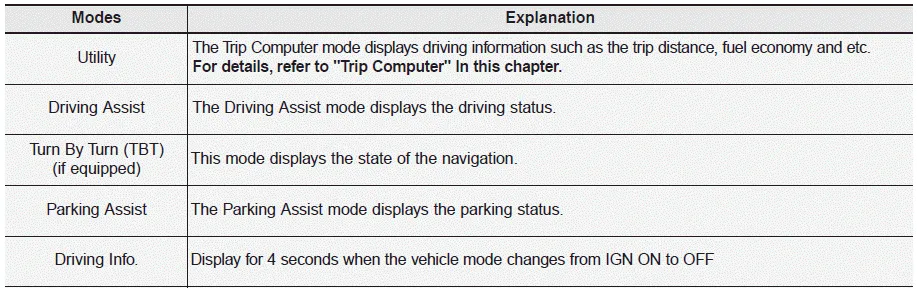

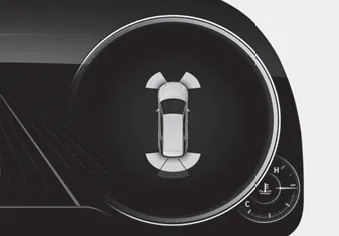

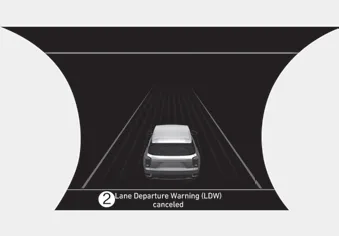

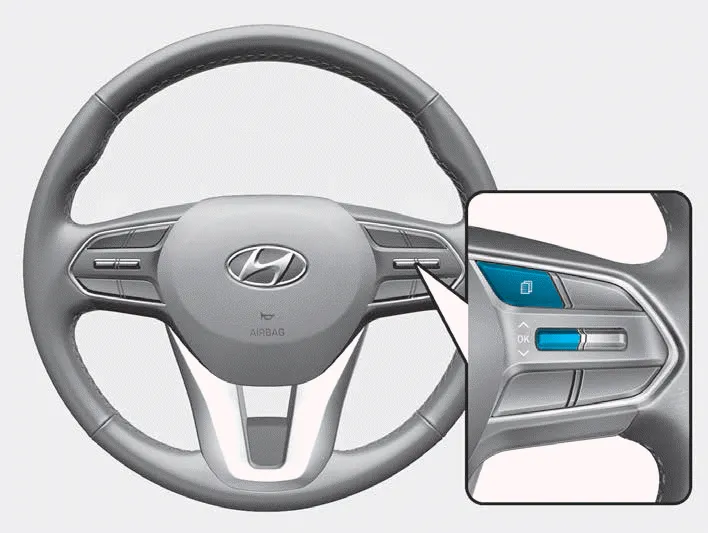

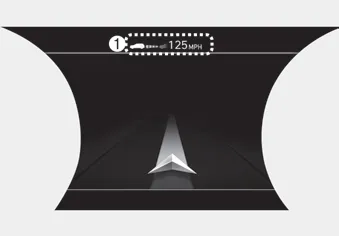

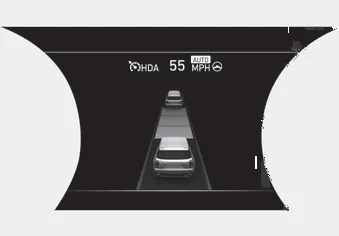

    LCD Display Control The LCD display modes can be changed by using the control buttons. (1) : MODE button for changing modes (2) , : MOVE switch for changing items (3) OK - Tab: SELECT/RESET button for setting the selected item - Tab and hold: SELECT/RESET button for retrieving assist information or resetting the selected item View Modes Utility View Mode The utility view mode displays information related to vehicle driving parameters including fuel economy and trip distance information...
