Specification
Ignition System
Ignition Coil
Item
Specification
Rated Voltage (V)
 12
Operating Voltage (V)
 5 - 16

Spark plug
Item
Specification
Type
 SILZKR7E11
Gap
 1.0 - 1.1 mm
(0.0394 - 0.0433 in.)
Insulation resistance (MΩ)
 10 or more

Condenser
Item
Specification
Capacitance (uF)
 0.47 [1KHz]
Insulation resistance (MΩ)
 1,000 [DC 500 V/1 Min]

Charging System

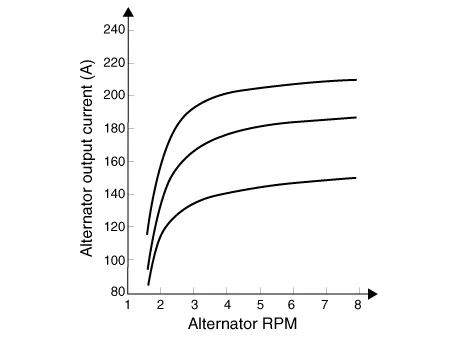

Alternator
Item
Specification
Rated voltage
 13.5V , 180A
Speed in use
 1,500 - 18,000rpm
Voltage regulator
 IC Regulator built in type
Default regulated voltage (V) [COM terminal]
 14.09 - 14.91 (-35°C)
13.96 - 15.04 (140°C)
Pin
 1

Hyundai Palisade. Specifications

Battery
Item
Specification
Model type
 AGM80L-BCI
Capacity [20HR/5HR] (AH)
 80 / 64
Cold Cranking Amperage (A)
 800 (SAE) / 640 (EN)
Reserve Capacity (Min)
 155

â–·CMF68L-DIN
Item
Specification
Capacity [20HR / 5HR] (AH)
 68 / 54
Cold Cranking Amperage (A)
 600 (SAE / EN)
Reserve Capacity (Min)
 113

â–·CMF80L-DIN
Item
Specification
Capacity [20HR / 5HR] (AH)
 80 / 64
Cold Cranking Amperage (A)
 660 (SAE / EN)
Reserve Capacity (Min)
 145

â–·CMF90L-DIN
Item
Specification
Capacity [20HR / 5HR] (AH)
 90 / 72
Cold Cranking Amperage (A)
 740 (SAE) / 740 (EN)
Reserve Capacity (Min)
 170

â–·CMF68L-DIN [Openable]
Item
Specification
Capacity [20HR / 5HR] (AH)
 68 / 54
Cold Cranking Amperage (A)
 600 (SAE / EN)
Reserve Capacity (Min)
 113

â–·CMF80L-DIN [Openable]
Item
Specification
Capacity [20HR / 5HR] (AH)
 80 / 64
Cold Cranking Amperage (A)
 660 (SAE / EN)
Reserve Capacity (Min)
 145

â–·CMF90L-DIN [Openable]
Item
Specification
Capacity [20HR / 5HR] (AH)
 90 / 72
Cold Cranking Amperage (A)
 740 (SAE) / 740 (EN)
Reserve Capacity (Min)
 170

Hyundai Palisade. Specifications
•

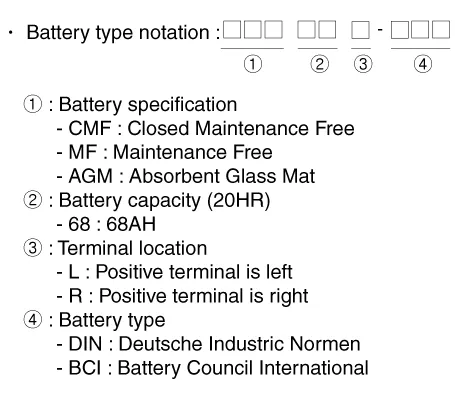

Model type description

Hyundai Palisade. Specifications
•
Cold Cranking Ampere (CCA) : A rating used in the battery industry to define a battery's ability to start an engine in cold temperatures.
–
The maximum current that a fully charged battery can deliver at -18 °C (-0.4 °F) for 30 seconds while maintaining a voltage of at least 7.2 volts for a 12-volt battery.
–
The higher the CCA rating, the greater the starting power of the battery.
•
RESERVE CAPACITY (RC) : A battery industry rating that defines the battery's ability to power a vehicle with an inoperative alternator or fan belt.
–
The rating is the number of minutes a battery at 26.7 °C(80 °F) can be discharged at 25 amps and maintain a voltage of 10.5 volts for a 12 volt battery.
–
The higher the reserve rating, the longer your vehicle can operate should your alternator or fan belt fail.
Hyundai Palisade. Specifications

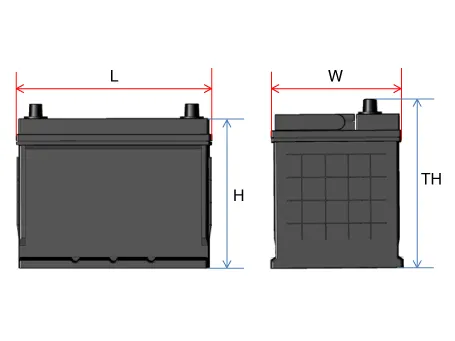

BCI Type
Capacity
(5HR/20HR)
Length
Width
Height
Total Height
L (mm)
W (mm)
T (mm)
TH (mm)
28/35
 188 - 192
 126 - 130
 198 - 202
 218 - 222
32/40
 194 - 198
 133 - 137
 199 - 203
 223 - 227
36/45
 203 - 207
 173 - 177
 200 - 204
 221 - 225
44/55
 213 - 217
 173 - 177
 198 - 202
 218 - 222
48/60
 228 - 232
 173 - 177
 200 - 204
 221 - 225
54/68
 258 - 262
 173 - 177
 198 - 202
 220 - 224
56/70
 258 - 262
 173 - 177
 198 - 202
 223 - 227
64/80
 274 - 278
 170 - 174
 198 - 202
 221 - 225
70/88
 349 - 353
 172 - 176
 186 - 200
 183 - 187
72/90
 300 - 304
 170 - 174
 200 - 204
 221 - 225
76/95
 294 - 298
 172 - 176
 198 - 202
 220 - 224
80/100
 326 - 330
 170 - 174
 203 - 207
 225 - 229

Hyundai Palisade. Specifications

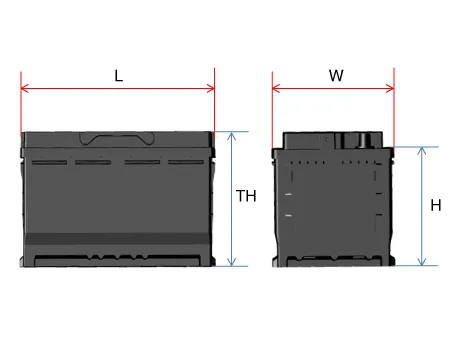

DIN Type
Capacity
(5HR/20HR)
Length
Width
Height
Total Height
L (mm)
W (mm)
T (mm)
TH (mm)
36/45
 205 - 207
 173 - 175
 164 - 168
 188 - 190
48/60
 205 - 207
 173 - 175
 164 - 168
 188 - 190
54/68
 205 - 207
 173 - 175
 164 - 168
 188 - 190
64/80
 205 - 207
 173 - 175
 164 - 168
 188 - 190
72/90
 205 - 207
 173 - 175
 164 - 168
 188 - 190
80/100
 205 - 207
 173 - 175
 164 - 168
 188 - 190
88/110
 205 - 207
 173 - 175
 164 - 168
 188 - 190

AGM DIN Type
Capacity
(5HR/20HR)
Length
Width
Height
Total Height
L (mm)
W (mm)
T (mm)
TH (mm)
40/50
 205 - 207
 173 - 175
 164 - 168
 188 - 190
48/60
 227 - 229
 173 - 175
 164 - 168
 188 - 190
56/70
 276 - 278
 173 - 175
 164 - 168
 188 - 190
64/80
 312 - 314
 173 - 175
 164 - 168
 188 - 190
72/90
 351 - 353
 173 - 175
 164 - 168
 188 - 190
84/105
 392 - 394
 173 - 175
 164 - 168
 188 - 190

Hyundai Palisade. Specifications
Starting System
Starter
Item
Specification
Rated voltage
 12 V, 1.7 kW
The number of pinion teeth
 11
Performance
[No-load, 11.5 V]
 Ampere
 Max. 105 A
Speed
 Min. 2,800 rpm

    Special Service Tools Tool Name / Number Illustration Description Alternator pulley remover wrench 09373-27000 Removal and installation of alternator pulley
