Hyundai Palisade (LX2): Emission Control System / Schematic diagrams

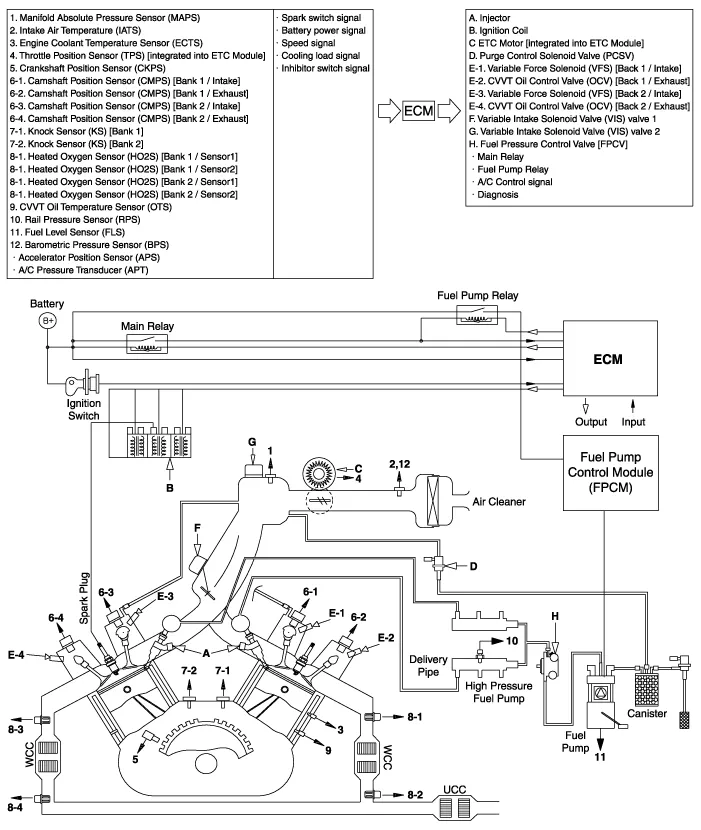

| Schematic Diagram |
Troubleshooting Symptom Suspected area Engine does not start or struggles to start Vapor hose damaged or disconnected Engine struggles to start Malfunctioning Purge Control Solenoid Valve Rough idle or engine stalls Vapor hose damaged or disconnected Malfunctioning PCV valve Rough idle Malfunctioning Evaporative Emission Control System Excessive oil consumption Positive crankcase ventilation line clogged
Components Location 1. PCV Valve 2. Canister 3. Purge control solenoid valve (PCSV) 4. Fuel level sensor (FLS) 5.
