Hyundai Palisade (LX2): Floor Carpet / Repair procedures

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body (Interior and Exterior) / Floor Carpet / Repair procedures

Replacement
Hyundai Palisade. Repair procedures
•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
Hyundai Palisade. Repair procedures
•
Take care not to bend or scratch the trim and panels.
1.
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
2.
Remove the rear seat cushion assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
3.
Remove the floor console assembly.
(Refer to Floor Console - "Floor Console Assembly")
4.
Remove the cowl side trim.
(Refer to Interior Trim - "Cowl Side Trim")
5.
Remove the center pillar lower trim.
(Refer to Interior Trim - "Center Pillar Trim")
6.
Remove the accelerator pedal module.
(Refer to Fuel system - "accelerator pedal")
7.

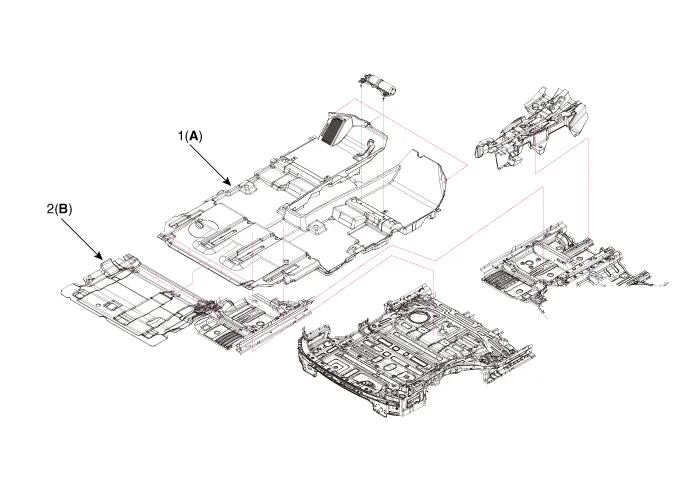

Remove the front floor carpet assembly (A) , and rear floor carpet assembly (B).
8.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Replace any damaged clips (or pin-type retainers).

Hyundai Palisade. Repair procedures

1. Front floor carpet assembly
 2. Rear floor carpet assembly
