Hyundai Palisade (LX2): Tailgate / Repair procedures
Hyundai Palisade (LX2) 2020-2025 Service Manual / Body (Interior and Exterior) / Tailgate / Repair procedures
| Adjustment |
| 1. |
Place the car on a flat surface and check whether the body and trunk
lid are well-aligned.
|
| 2. |

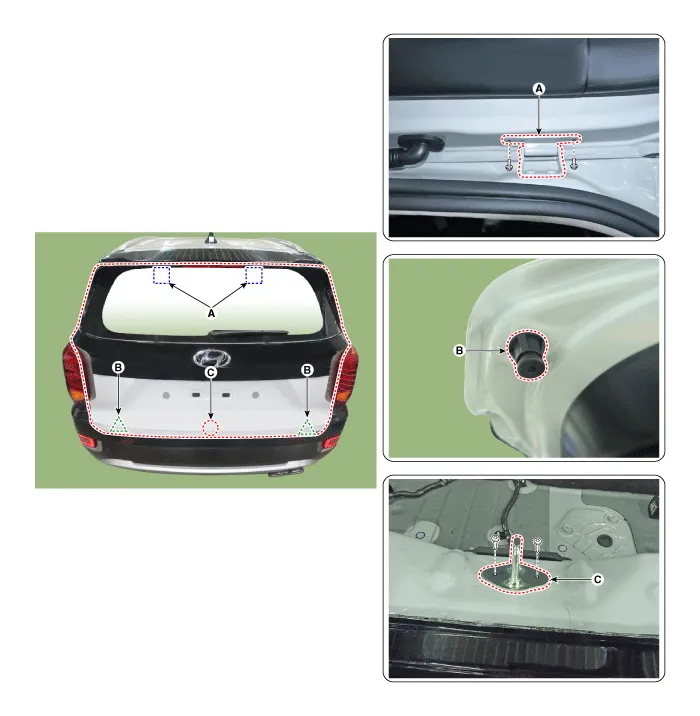

After loosening the tailgate hinge (A) mounting bolt, adjust the tailgate
by moving it up and down or from side to side.
|
| 3. |
Adjust the gap between the tailgate and body by turning the tailgate
overslam bumpers (B).
|
| 4. |
After loosening the tailgate striker (C) mounting bolts, adjust the
striker by moving it back and forth or from side to side and then tighten
the mounting bolts.
|
| 5. |
Make sure the tailgate opens or closes properly.
|
Components and components location Component Location 1. Tailgate assembly
