Hyundai Palisade (LX2): Rear Seat / Rear Seat Cushion Cover
Components and components location
| Component Location |

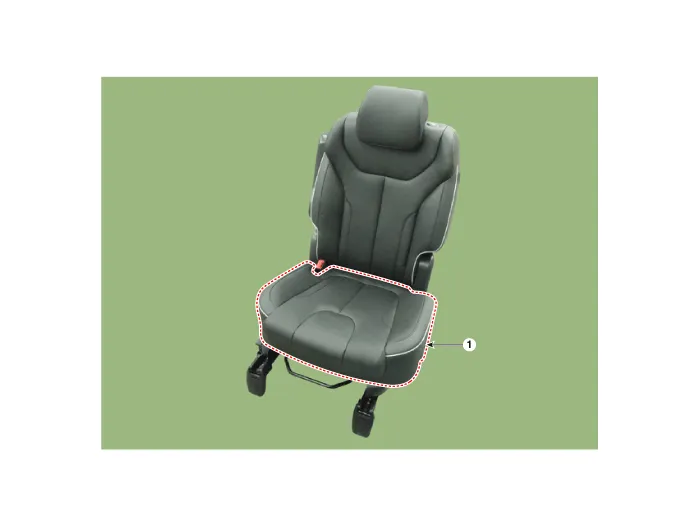

| [Second-row seat assembly for 7 passengers] |
| 1. Second-row seat cushion assembly |

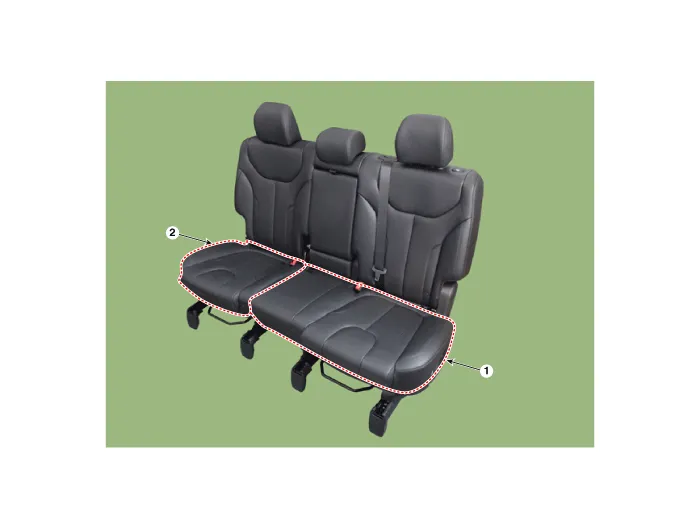

| [Second-row seat assembly for 8 passengers] |
| 1. Second-row seat cushion assembly
[LH] |
2. Second-row seat cushion assembly
[RH] |

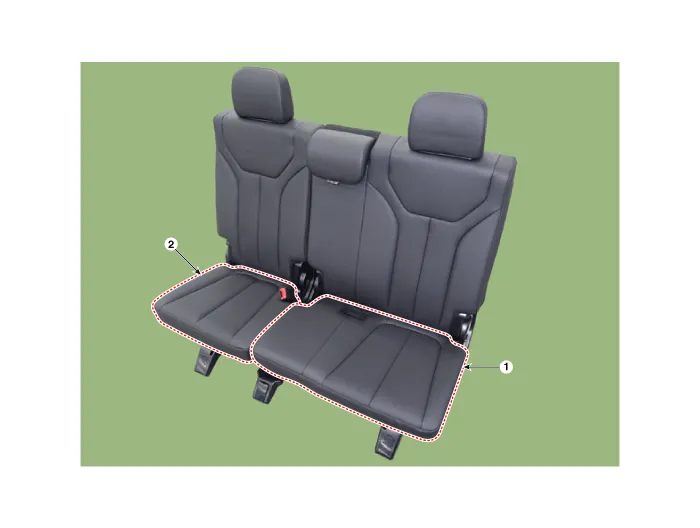

| [Third-row seat assembly] |
| 1. Third-row seat cushion assembly
[LH] |
2. Third-row seat cushion assembly
[RH] |
Components and components location Component Location [Second-row seat assembly for 7 passengers] 1. Second-row seat back assembly [Second-row seat assembly for 8 passengers] 1.
