Hyundai Palisade (LX2): Front Bumper / Radiator Grill

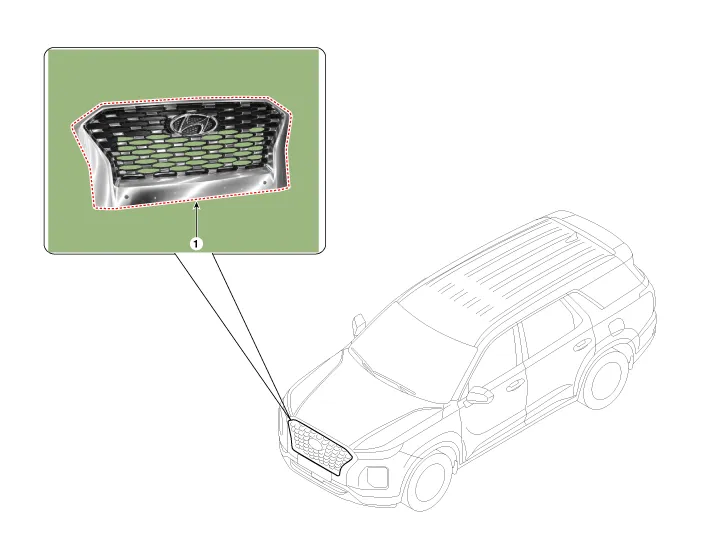

Components and components location

Component Location

Hyundai Palisade. Components and components location

1. Radiator grill


Repair procedures

Replacement
Hyundai Palisade. Repair procedures
•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
Hyundai Palisade. Repair procedures
•
Take care not to bend or scratch the trim and panels.
1.
Remove the front bumper cover.
(Refer to Front Bumper - "Front Bumper Cover")
2.

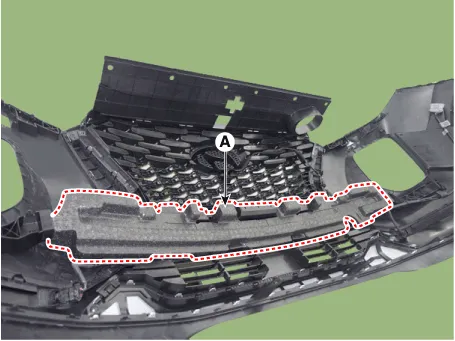

Remove the front bumper energy absorber (A).

Hyundai Palisade. Repair procedures

3.

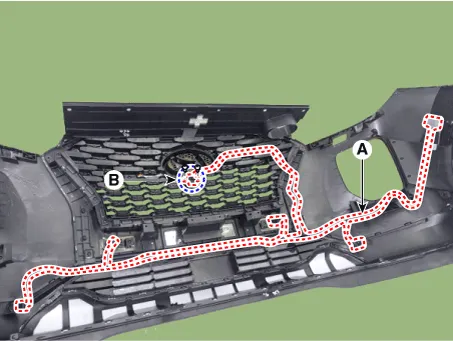

Remove the radiator grill wiring (A) and loosen the mounting screws and remove the braket (B).

Hyundai Palisade. Repair procedures

4.

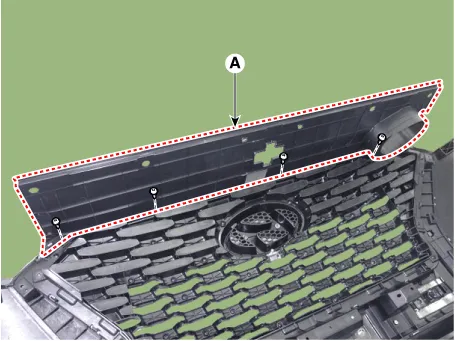

Loosen the mounting screws and remove the front bumper upper cover (A).

Hyundai Palisade. Repair procedures

5.

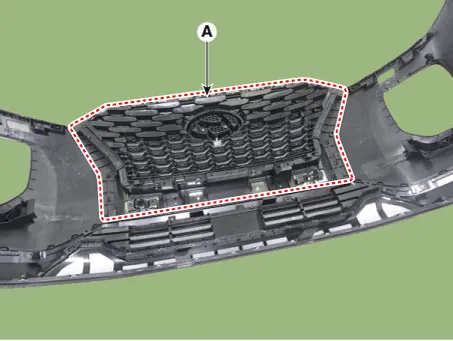

Loosen the mounting screws and remove the radiator grill (A).

Hyundai Palisade. Repair procedures

6.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Replace any damaged clips (or pin-type retainers).
