Hyundai Palisade (LX2): Power Windows / Power Window Switch

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body Electrical System / Power Windows / Power Window Switch

Components and components location

Components

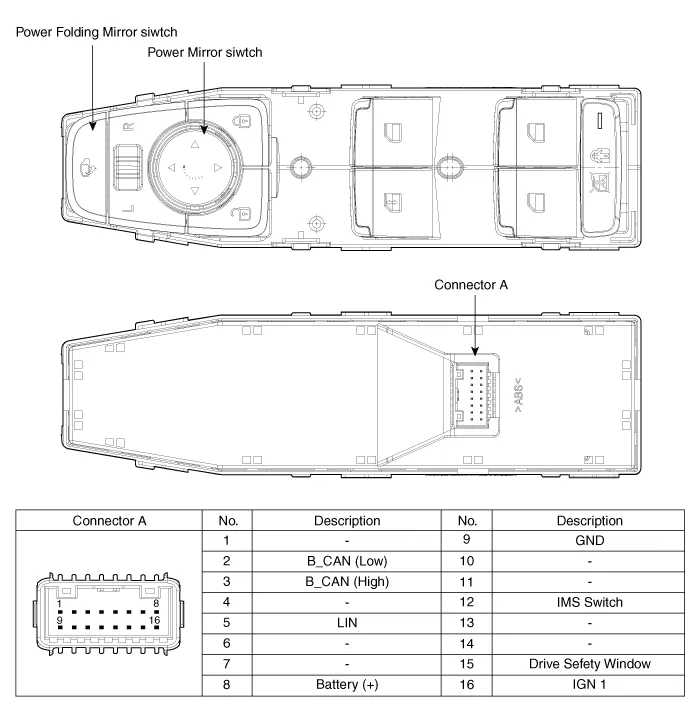

Driver Power Window Switch

Hyundai Palisade. Components and components location

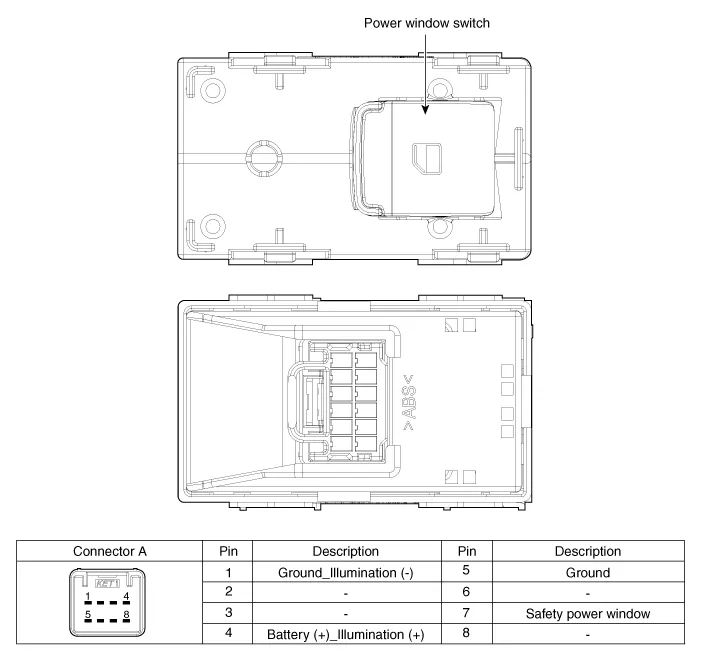

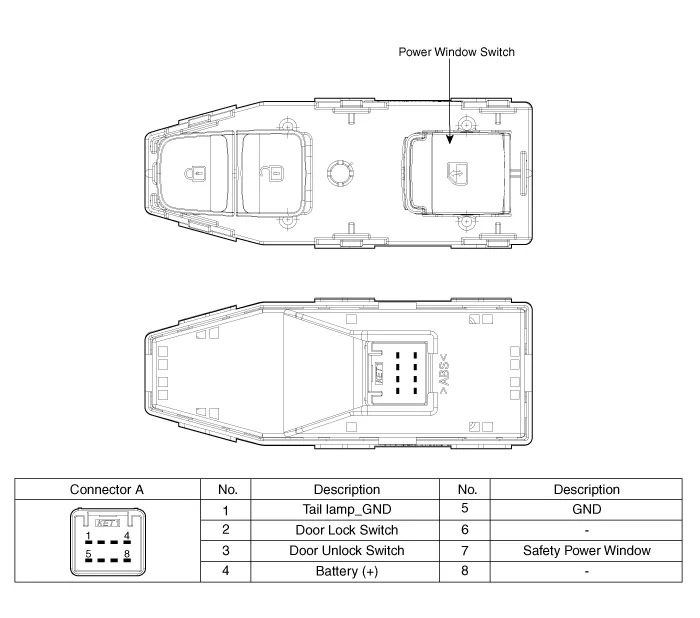

Assist Power Window Switch

Hyundai Palisade. Components and components location

Rear Power Window Switch

Hyundai Palisade. Components and components location

Schematic diagrams

Circuit Diagram

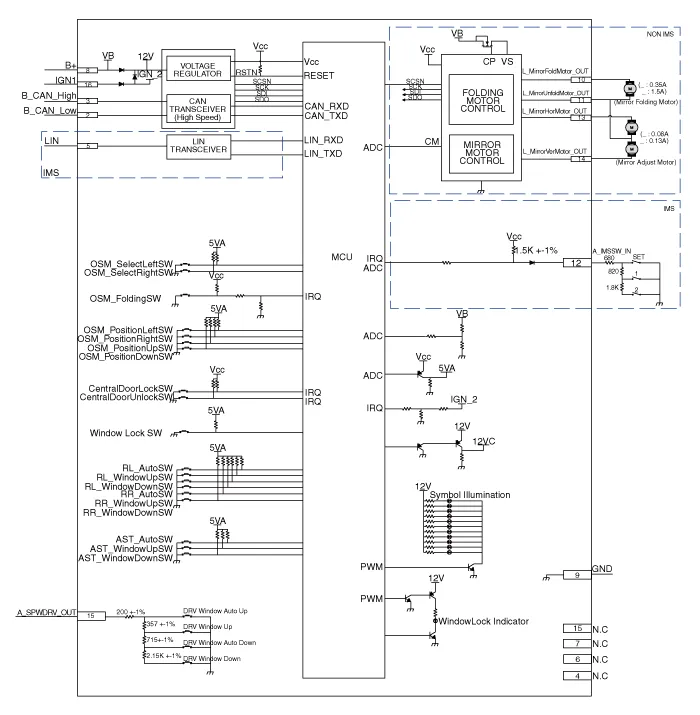

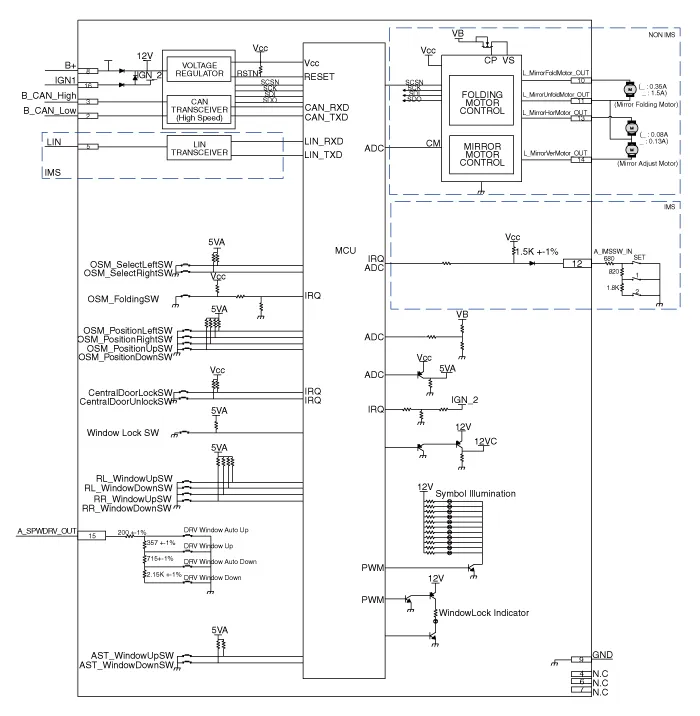

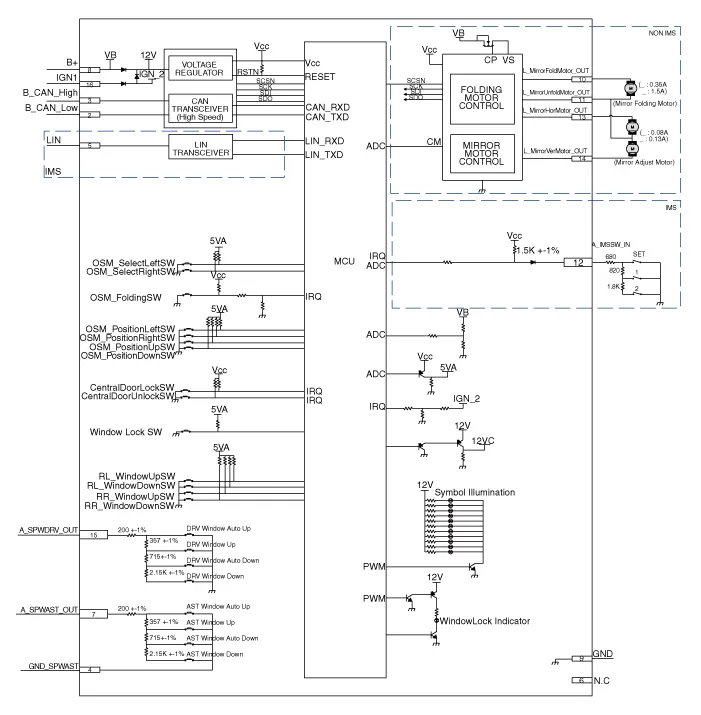

[Driver Power Window Switch]
Driver safety switch

Hyundai Palisade. Schematic diagrams

Front safety switch

Hyundai Palisade. Schematic diagrams

ALL safety switch

Hyundai Palisade. Schematic diagrams

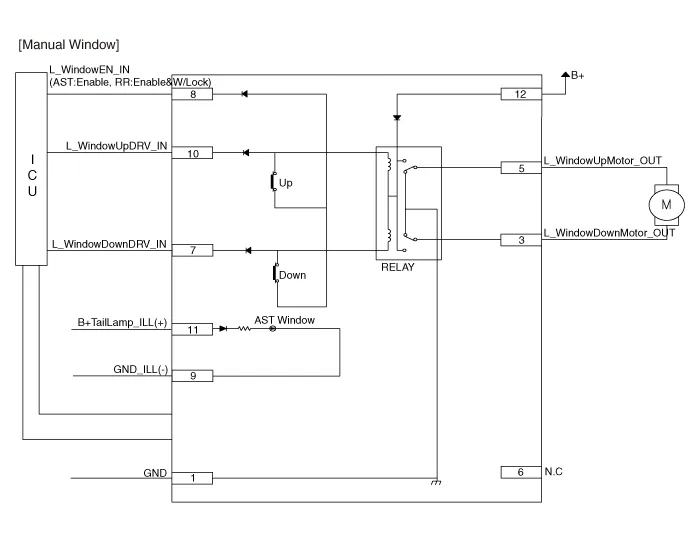

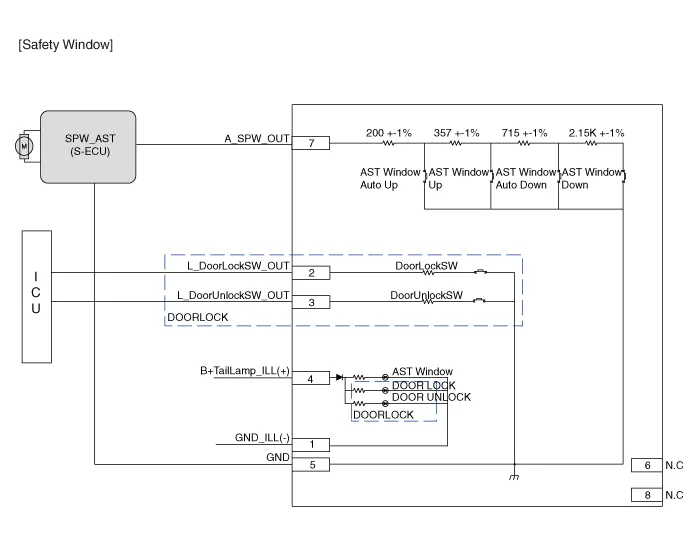

[Assist Power Window Switch]

Hyundai Palisade. Schematic diagrams

Hyundai Palisade. Schematic diagrams

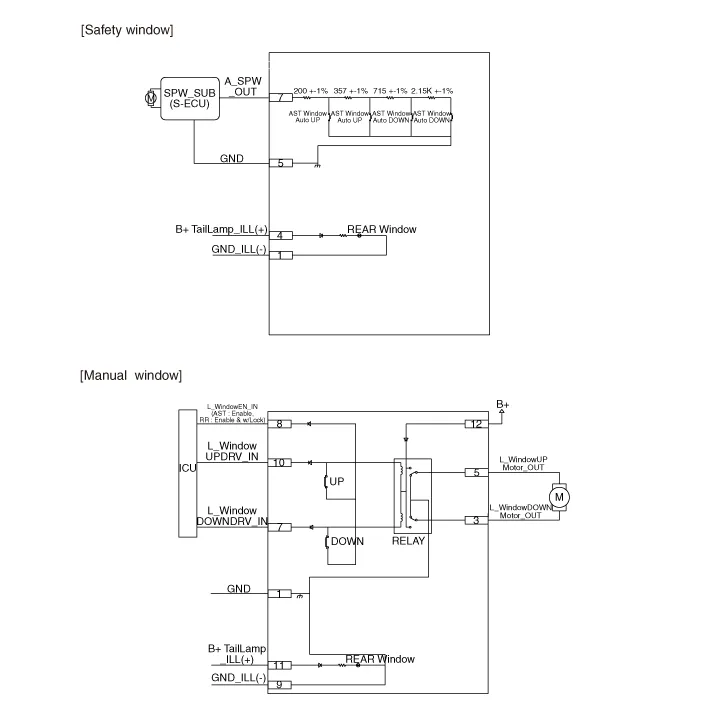

[Rear Power Window Switch]

Hyundai Palisade. Schematic diagrams

Repair procedures

Diagnosis with Diagnostic tool
Diagnosis with Diagnostic tool
1.
In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (Diagnostic tool).
The diagnostic system (Diagnostic tool) provides the following information.
(1)
Fault Code Searching : Checking failure and code number (DTC)
(2)
Data Analysis : Checking the system input/output data state
(3)
Actuation test : Checking the system operation condition
(4)
S/W Management : Controlling other features including system option setting and zero point adjustment
2.
If diagnose the vehicle by Diagnostic tool, select "DTC Analysis" and "Vehicle".

Hyundai Palisade. Repair procedures
3.
Select the 'Data Analysis' and 'Car model'.

Hyundai Palisade. Repair procedures
4.

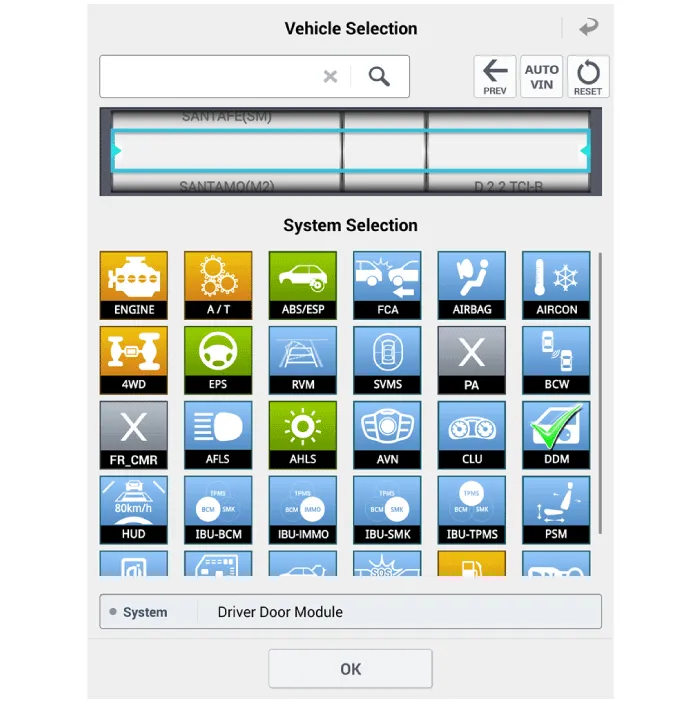

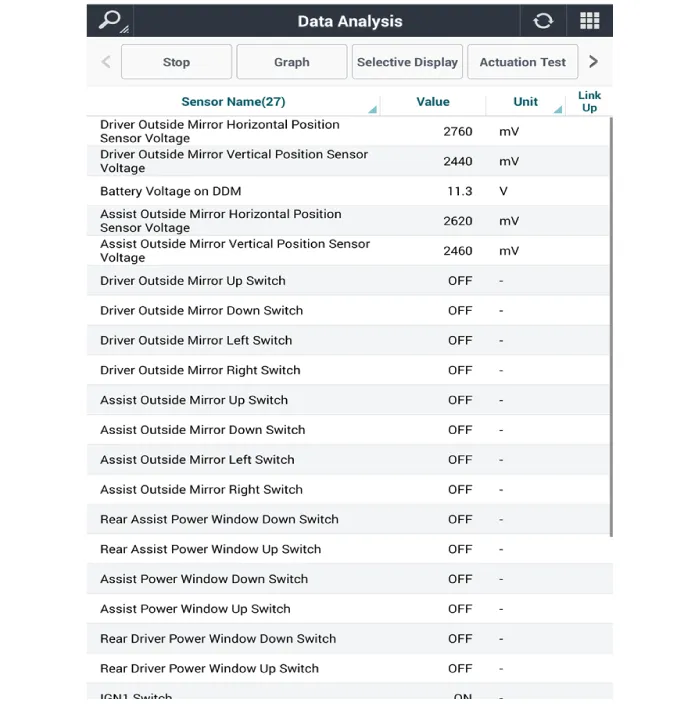

Select the 'DDM' to search the current state of the input/output data.

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures
5.

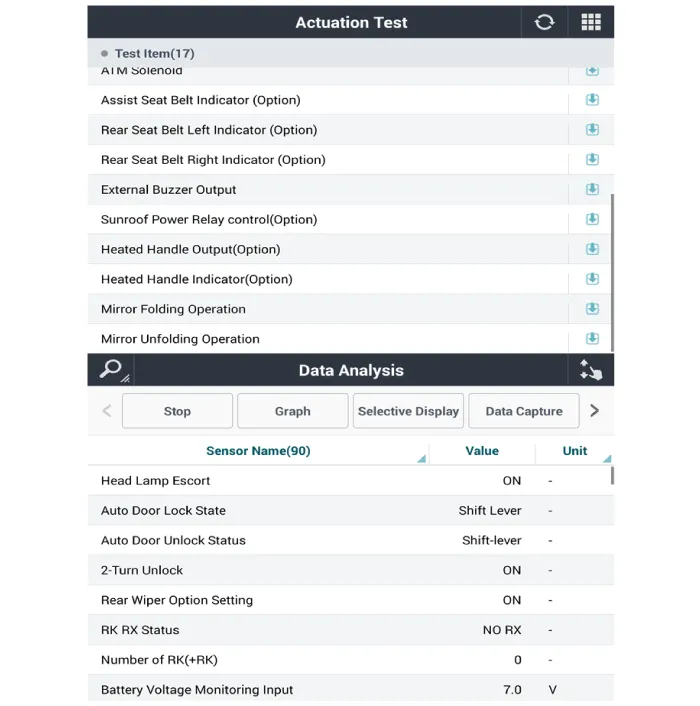

To forcibly actuate the input value of the module to be checked, select option 'Actuation Test'.

Hyundai Palisade. Repair procedures
Removal
Driver Power Window Switch
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front door trim.
(Refer to Body - "Front Door Trim")
3.

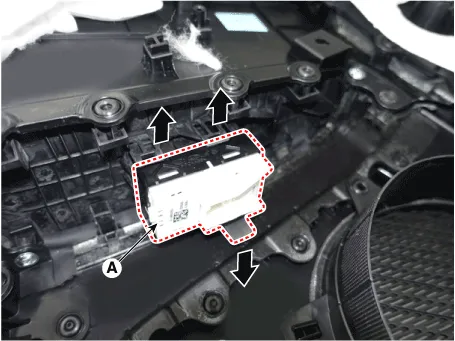

Disengage the mounting clip and then remove the power window switch assembly (A).

Hyundai Palisade. Repair procedures
Assist Power Window Switch
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front door trim.
(Refer to Body - "Front Door Trim")
3.
Disengage the mounting clip and then remove the power window switch assembly (A).

Hyundai Palisade. Repair procedures
Rear Power Window Swtich
1.
Disconnect the negative (-) battery terminal.
2.
Remove the rear door trim.
(Refer to Body - "Rear Door Trim")
3.
Disengage the mounting clip and then remove the power window switch assembly (A).

Hyundai Palisade. Repair procedures
Installation
Driver Power Window Switch
1.
Install the power window switch assembly.
2.
Install the front door trim after connecting the connector.
Assist Power Window Switch
1.
Install the power window switch assembly.
2.
Install the front door trim after connecting the connector.
Rear Power Window Swtich
1.
Install the power window switch assembly.
2.
Install the rear door trim after connecting the connector.
