Components and components location

Components

Hyundai Palisade. Components and components location

1. Blind spot radar warning indicator
2. Side repeater lamp

3. Puddle lamp
4. SVM camera

Repair procedures

Inspection

1.	Disconnect the negative (-) battery terminal.

2.	Remove the door trim. (Refer to Body - "Front Door Trim")

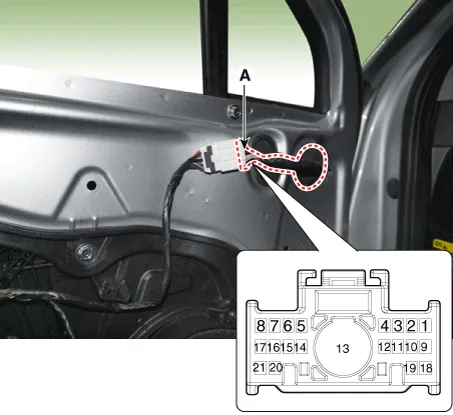

3.	Disconnect the power door mirror connector (A) from the harness.

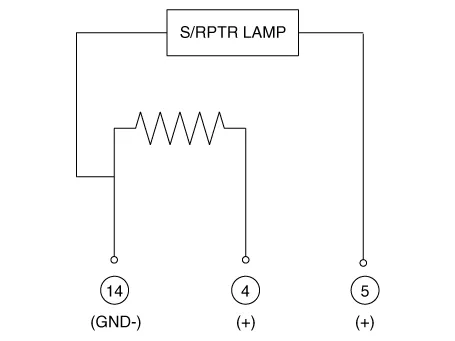

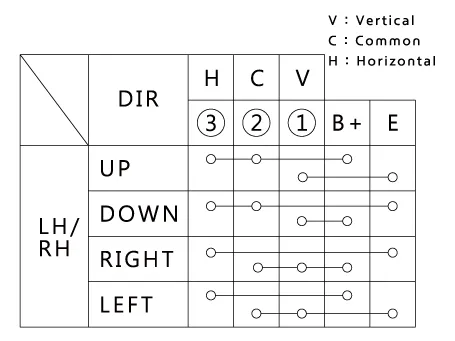

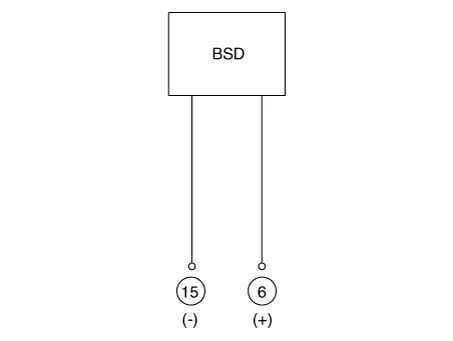

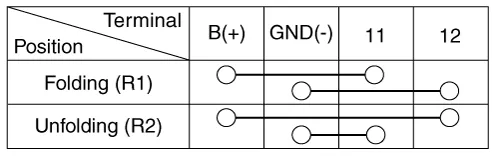

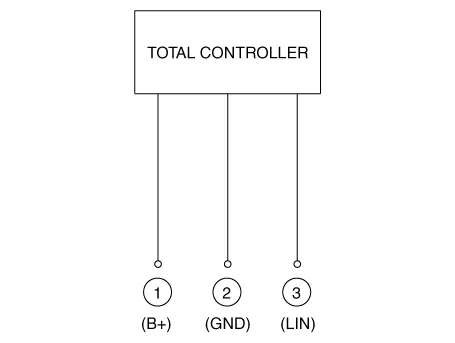

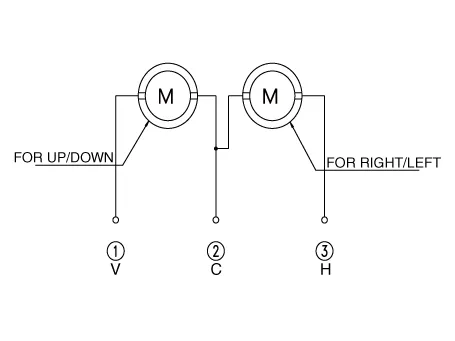

4.	Apply battery voltage to each terminal as shown in the table and verify that the mirror operates properly. [Actuator] Blind spot radar Indicator Control Unit Mirror Heater Puddle Lamp Folding Mirror

Removal

1.	Disconnect (-) battery terminal.

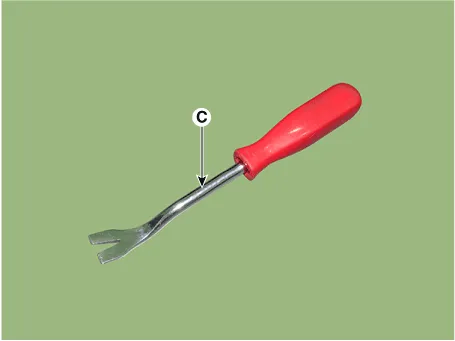

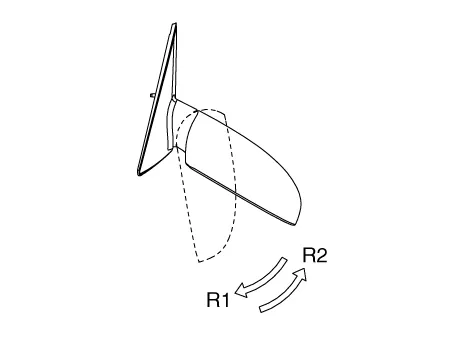

Using a fastener remover (C), remove the mirror (A) as illustration below.

Hyundai Palisade. Repair procedures

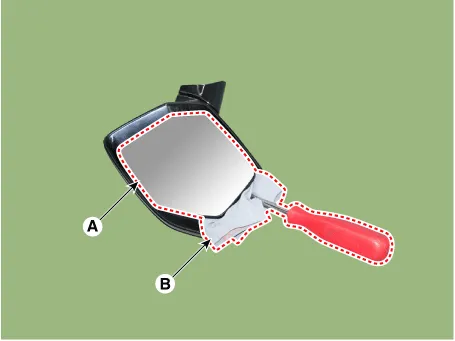

•	Protect mirror from removing tool with cloth (B) wrapped.

•	Be careful not to damage mirror and mirror housing during removing process.

•	Apply force around the center of mirror because to apply force the end of mirror will break it.

3.	Disconnect heat wire connectors (A) and then remove the mirror.

Installation

1.	Install the mirror after connecting mirror connectors.

2.	Connect (-) battery terminal then check if mirror works normally.
