Hyundai Palisade (LX2): Windshield defrosting and defogging / Manual Climate Control System

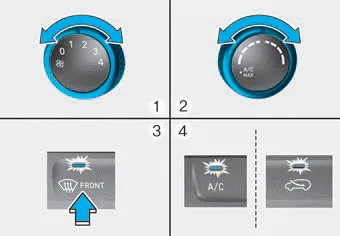

To defog inside windshield
1. Select any fan speed except "0" position.
2. Select the desired temperature.
3. Select the
or
position.
4. Fresh mode will be selected automatically.
Additionally, the air conditioning
will automatically operate if
the mode is selected to the
position.
Check to make sure the A/C is ON. If the A/C ON LED is not illuminated, press the A/C button once to turn the air conditioner ON.
Check to make sure the air intake control is in Fresh mode. If the air intake control LED is illuminated, press the button once to enable Fresh mode (LED OFF).
To defrost outside windshield
1. Set the fan speed to the highest setting (knob rotated all the way to the right).
2. Set the temperature control to the highest temperature setting.
3. Select the position.
4. Fresh mode (Recirculation OFF) and A/C ON will automatically be selected.
WARNING Windshield heating Do not use the or position during cooling operation in extremely humid weather. The difference between the temperature of the outside air and that of the windshield could cause the outer surface of the windshield to fog up, causing loss of visibility could cause an accident resulting in serious injury or death.
To defog inside windshield 1. Select the desired fan speed. 2. Select the desired temperature. 3. Press the defroster button (). 4. Fresh mode will be selected automatically.
