Hyundai Palisade. Locking your vehicle

To lock your vehicle using the door handle button or the Smart Key:

1.Make sure all doors, the hood and the liftgate are closed.

2.Make sure you have the smart key in your possession.

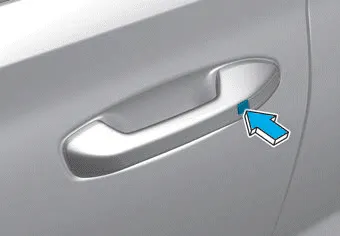

3.Press either the button on the door handle or the Door Lock button (1) on the smart key. The chime will sound once and the hazard warning lights will blink.

4.Make sure the doors are locked by checking the position of the door lock button inside the vehicle.

Information

The door handle button will only operate when the smart key is within 28~40 inches (0.7~1 m) from the outside door handle.

Note that you cannot lock your vehicle using the door handle button if any of the following occur:

  • The Smart Key is in the vehicle.
  • The Engine Start/Stop button is in ACC or ON position.
  • Any of the doors are open except for the liftgate.

WARNING

Do not leave the Smart Key in your vehicle with unsupervised children. Unattended children could press the Engine Start/ Stop button and may operate power windows or other controls, or even make the vehicle move, which could result in serious injury or death.

    â–  Type A â–  Type B Your HYUNDAI uses a Smart Key, which you can use to lock or unlock the driver and passenger doors or the rear liftgate. 1.Door Lock 2.

    To unlock your vehicle: 1.Make sure you have the smart key in your possession. 2.Press either the button on the door handle or the Door Unlock button (2) on the smart key.
