Hyundai Palisade (LX2): Fuel Filler Door / Fuel Filler Door Release Actuator

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body Electrical System / Fuel Filler Door / Fuel Filler Door Release Actuator

Repair procedures

Removal
1.
Remove the left luggage side trim.
(Refer to Body - "Luggage Side Trim")
2.

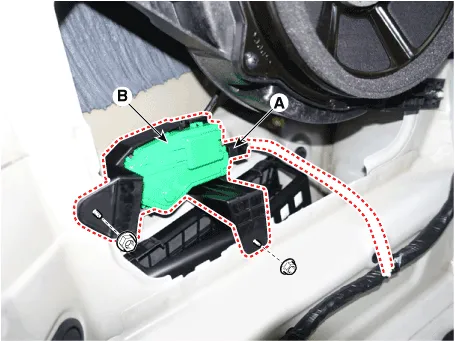

Disconnect the connector (A) and then remove the release actuator (B).

Hyundai Palisade. Repair procedures
3.

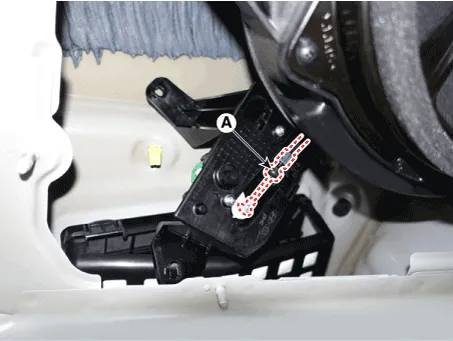

Disconnect the cable (A) and then remove the release actuator.

Hyundai Palisade. Repair procedures
4.

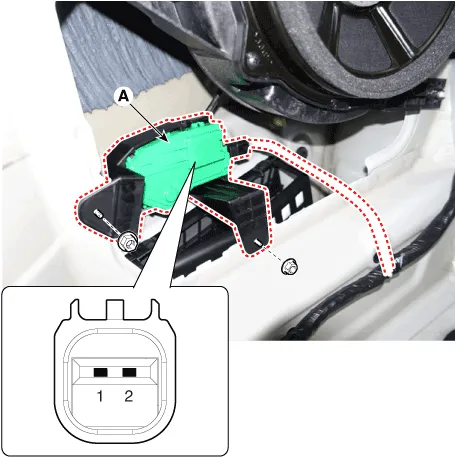

Check for continuity between terminal No. 1 and No. 2. If there is no continuity, replace the fuel filler door release actuator (A).

Hyundai Palisade. Repair procedures

    Component Location 1. Fuel filler door release actuator
