Hyundai Palisade (LX2): Automatic Transaxle Control System / Electronic Shift Actuator

Description and operation

Description

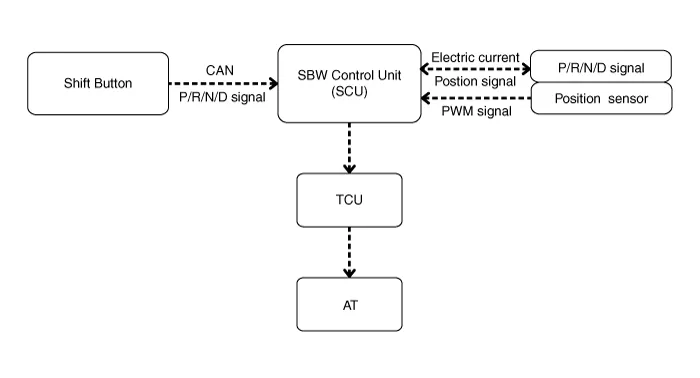

Controls the 4 position of P(Parking), R, N, D using the rotation of the motor of according to the electric signal when the shift button is operated.

Hyundai Palisade. Description and operation

Repair procedures

Removal
1.
Turn ignition switch OFF and disconnect the negative (-) battery cable.
2.
Remove the battery and battery tray.
(Refer to Engine Electrical System - "Battery")
3.
Remove the air duct and the air cleaner assembly.
(Refer to Engine Mechanical System - "Air Cleaner")
4.

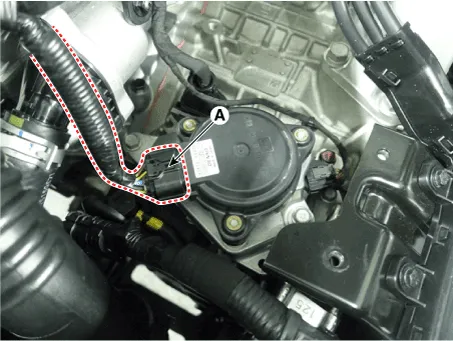

Disconnect the electronic shift actuator connector (A).

Hyundai Palisade. Repair procedures

5.

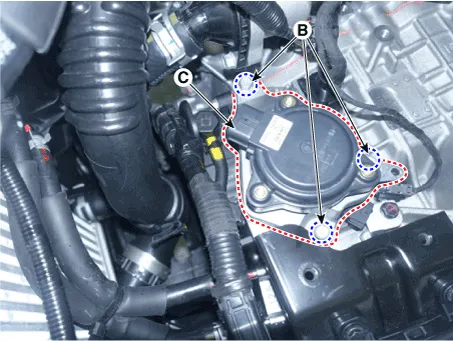

Remove the bolt (B) and then remove the electronic shift actuator (C).
Tightening torque :
20.6 - 26.5 N.m (2.1 - 2.7 kgf.m, 15.2 - 19.5 lb-ft)

Hyundai Palisade. Repair procedures

Installation
1.
To install, reverse the removal procedure.
