Hyundai Palisade (LX2): Automatic Transaxle Control System / Description and operation
| Description |
| • |
Automatic transaxle system relies on various measurement data to determine
the current control status and extrapolate the necessary compensation
values.
|
| • |
These values are used to control the actuators and achieve the desired
control output.
|
| • |
If a problem with the drivetrain, including the transaxle, has been
identified, perform self-diagnosis and basic transaxle inspection (oil
and fluid inspection) and then check the control system's components
using the diagnosis tool.

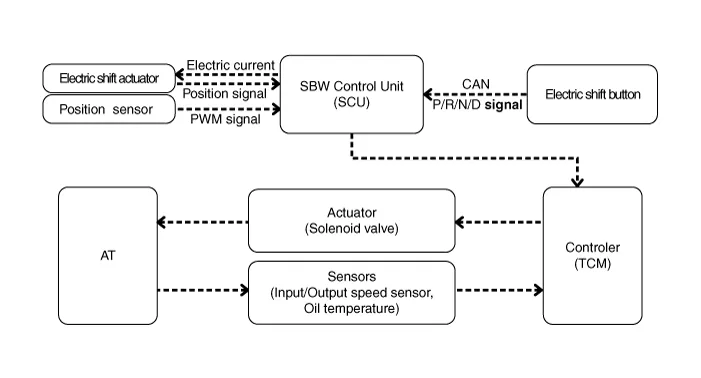

Control System Composition
|
Adjustment TCM Learning 1. Overview and purpose of learning 1) The purpose is to ensure the initial operation safety by correcting the oil pressure differences between transmissions.
