Hyundai Palisade (LX2): Lighting System / Components and components location

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body Electrical System / Lighting System / Components and components location

Component Location

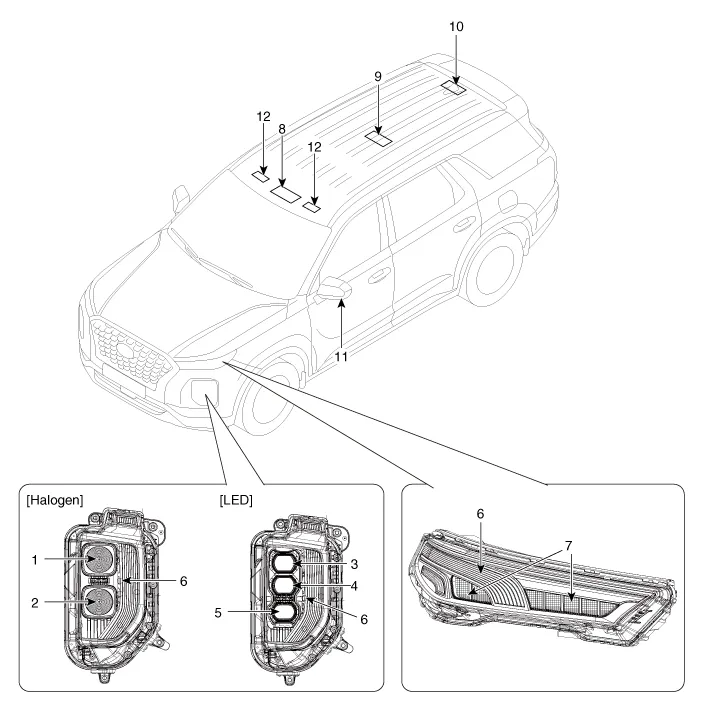

Hyundai Palisade. Components and components location

1. Head lamp (Low)
2. Head lamp (High)
3. Head lamp (Spread Low)
4. Head lamp (Hot spot Low)
5. Head lamp (Sub Low/High)
6. DRL / Position lamp
 7. Turn signal lamp
8. Over head console lmap
9. Room lamp
10. Cago lamp
11. Door mirror turn signal lamp
12. Vanity lamp

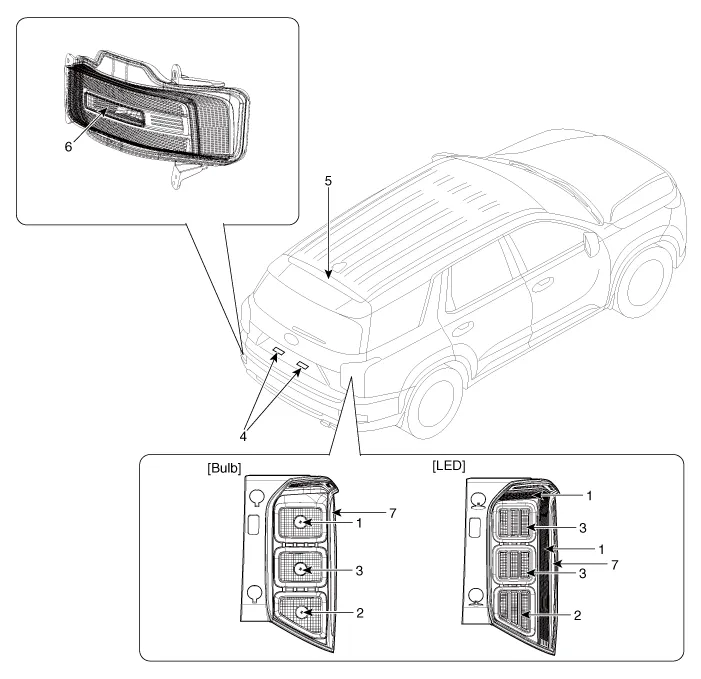

Hyundai Palisade. Components and components location

1. Tail lamp
2. Turn signal lamp
3. Bulb : Tail/Stop lamp, LED : Stop lamp
4. License plate lamp
 5. High mounting stop lamp
6. Back up lamp
7. Side maker lamp

    Specifications Items Bulb Type Bulb Wattage (W) Front Head lamp (STD) Low 9005L+ 60 High H7LL 55 Head lamp (LED) Low LED LED High LED LED Turn signal lamp LED LED Position lamp LED LED Daytime Running Lamp (DRL) LED LED Door mirror turn signal lamp LED LED Rear High mounted stop lamp LED LED Rear combination lamp Stop lamp 28/8W LED Tail lamp 28/8W LED Turn signal lamp 28/8W LED Back up lamp PY21W 21 License plate lamp W5W 5 Cargo lamp BULB/LED FESTOON 8W/LED Map lamp BULB/LED W8WB/LED Room lamp BULB/LED W8WB/LED Vanity lamp BULB/LED FESTOON 5W/LED

    Repair procedures Removal    Head lamps become very hot during use; do not touch them or any attaching hardware immediately after they have been turned off.
