Hyundai Palisade (LX2): Electro Chromic Inside Rear View Mirror / Components and components location
Hyundai Palisade (LX2) 2020-2026 Service Manual / Body Electrical System / Electro Chromic Inside Rear View Mirror / Components and components location
| Components |

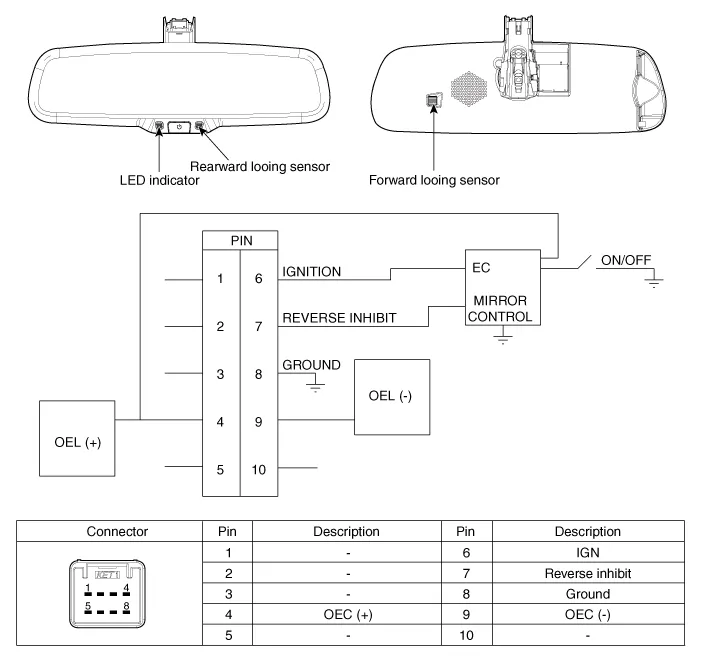

ECM

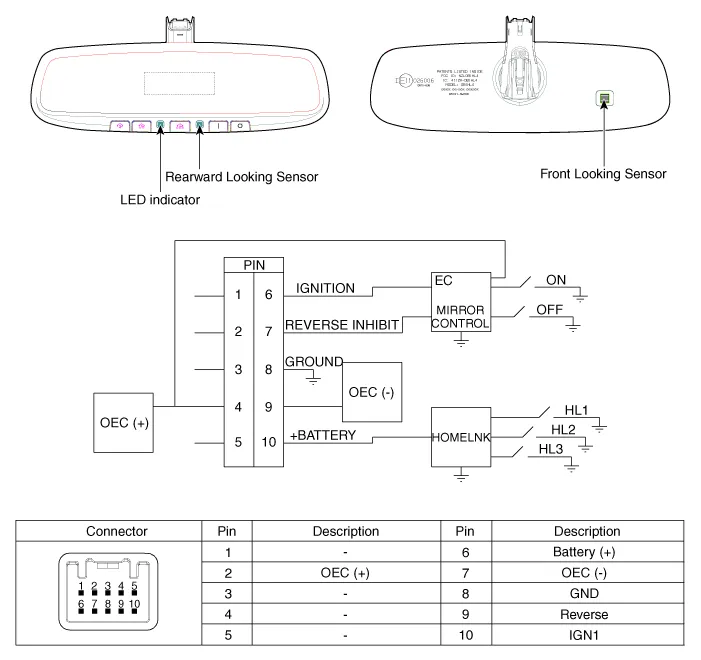

Home Link + ECM
Description The ECM (Electro Chromatic inside rear view Mirror) is intended dim the reflecting light in the rear view mirror. The forward facing sensor detects brightness of the surroundings, while the rearward looking sensor is for the light from the rear.
