Hyundai Palisade (LX2): Exhaust Emission Control System / Catalytic Converter
Hyundai Palisade (LX2) 2020-2025 Service Manual / Emission Control System / Exhaust Emission Control System / Catalytic Converter
Description and operation
| Description |
The catalytic converter of the gasoline engine is a three way catalyst. It oxidizes
carbon monoxide and hydrocarbons (HC), and separates oxygen from the oxides
of nitrogen (NOx).

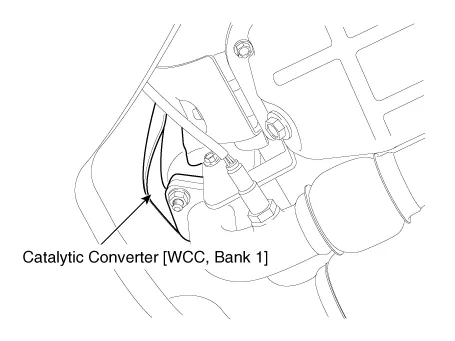

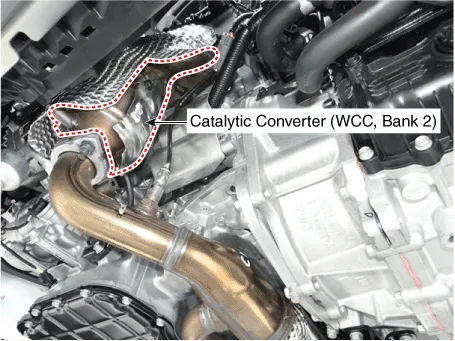

Catalytic Converter (WCC)

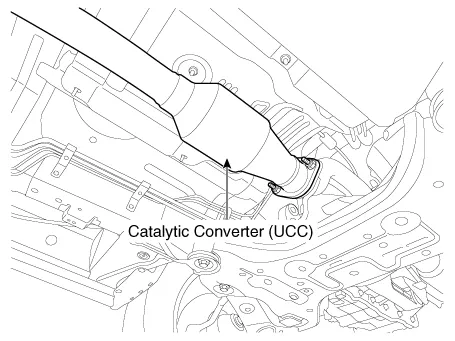

Catalytic Converter (UCC)
Repair procedures
| Removal |
| Catalytic Converter (WCC) |
Refer to Engine Mechanical System - "Exhaust Manifold"
| Catalytic Converter (UCC) |
Refer to Engine Mechanical System - "Muffler"
| Installation |
| Catalytic Converter (WCC) |
Refer to Engine Mechanical System - "Exhaust Manifold"
| Catalytic Converter (UCC) |
Refer to Engine Mechanical System - "Muffler"
