Hyundai Palisade: Smart Cruise Control With Stop & Go System / Limitations of the System

Hyundai Palisade (LX2) 2020-2024 Owner's Manual / Driving Your Vehicle / Smart Cruise Control With Stop & Go System / Limitations of the System

The Smart Cruise Control system may have limits to its ability to detect distance to the vehicle ahead due to road and traffic conditions.

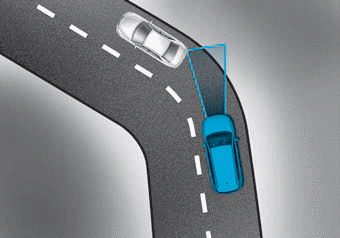

On curves

Hyundai Palisade. Limitations of the System

  • The Smart Cruise Control system may not detect a moving vehicle in your lane, and then your vehicle could accelerate to the set speed. Also, the vehicle speed will decrease when the vehicle ahead is recognized suddenly.
  • Select the appropriate set speed on curves and apply the brakes or accelerator pedal if necessary.

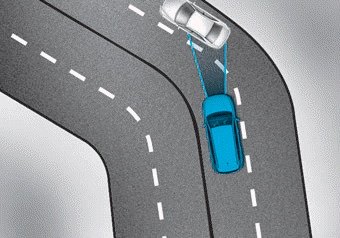

Hyundai Palisade. Limitations of the System

Your vehicle speed can be reduced due to a vehicle in the adjacent lane.

Apply the accelerator pedal and select the appropriate set speed. Check to be sure that the road conditions permit safe operation of the Smart Cruise Control.

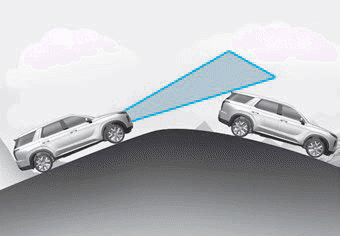

On inclines

Hyundai Palisade. Limitations of the System

  • During uphill or downhill driving, the Smart Cruise Control system may not detect a moving vehicle in your lane, and cause your vehicle to accelerate to the set speed. Also, the vehicle speed will rapidly decrease when the vehicle ahead is recognized suddenly.
  • Select the appropriate set speed on inclines and apply the brake or accelerator pedal if necessary.

Lane changing

Hyundai Palisade. Limitations of the System

  • A vehicle which moves into your lane from an adjacent lane cannot be recognized by the sensor until it is in the sensor's detection range.
  • The radar may not detect immediately when a vehicle cuts in suddenly. Always pay attention to the traffic, road and driving conditions.
  • If a slower vehicle moves into your lane, your speed may decrease to maintain the distance to the vehicle ahead.
  • If a faster vehicle which moves into your lane, your vehicle will accelerate to the set speed.

Detecting vehicles

Hyundai Palisade. Limitations of the System

Some vehicles in your lane cannot be recognized by the sensor:

- Narrow vehicles such as motorcycles or bicycles
- Vehicles offset to one side
- Slow-moving vehicles or suddendecelerating vehicles
- Stopped vehicles
- Vehicles with small rear profile such as trailers with no loads

A vehicle ahead cannot be recognized correctly by the sensor if any of following occurs:

- When the vehicle is pointing upwards due to overloading in the luggage compartment
- While the steering wheel is operating
- When driving to one side of the lane
- When driving on narrow lanes or on curves

Apply the brake or accelerator pedal if necessary.

Hyundai Palisade. Limitations of the System

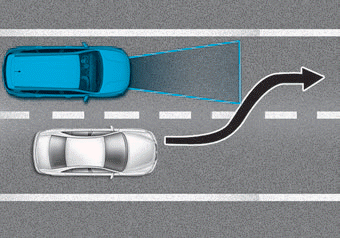

  • Your vehicle may accelerate when a vehicle ahead of you disappears.
  • When you are warned that the vehicle ahead of you is not detected, drive with caution.

Hyundai Palisade. Limitations of the System

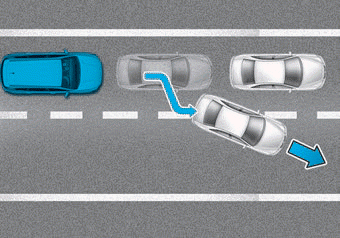

• When driving in stop-and-go traffic, and a vehicle in front of you merges out of the lane, the system may not immediately detect the new vehicle that is now in front of you. In this case, you must maintain a safe braking distance, and if necessary, depress the brake pedal to reduce your driving speed in order to maintain a safe distance.

Hyundai Palisade. Limitations of the System

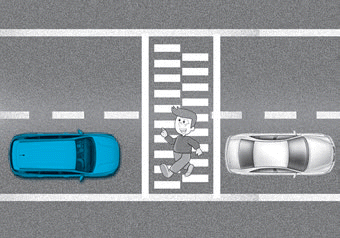

• Always look out for pedestrians when your vehicle is maintaining a distance with the vehicle ahead.

Hyundai Palisade. Limitations of the System

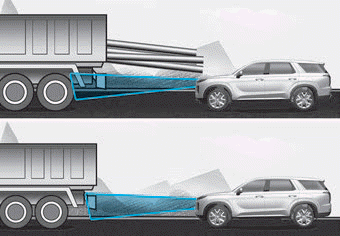

• Always be cautious for vehicles with higher height or vehicles carrying loads that sticks out from the back of the vehicle.

WARNING

When using the Smart Cruise Control take the following precautions:

  • If an emergency stop is necessary, you must apply the brakes. The smart cruise control system cannot guarantee the stop for every emergency situation.
  • Keep a safe distance according to road conditions and vehicle speed. If the vehicle to vehicle distance is too close during a high-speed driving, a serious collision may result.
  • Always maintain sufficient braking distance and decelerate your vehicle by applying the brakes if necessary.
  • The Smart Cruise Control system cannot recognize a stopped vehicle, pedestrians or an oncoming vehicle. Always look ahead cautiously to prevent unexpected and sudden situations from occurring.
  • Vehicles moving in front of you with a frequent lane change may cause a delay in the system's reaction or may cause the system to react to a vehicle actually in an adjacent lane. Always drive cautiously to prevent unexpected and sudden situations from occurring.
  • Always be aware of the selected speed and vehicle to vehicle distance. The driver should not solely rely on the system but always pay attention to driving conditions and control your vehicle speed.
  • The Smart Cruise Control system may not recognize complex driving situations so always pay attention to driving conditions and control your vehicle speed.
  • The Smart Cruise Control system may recognize a pedestrian, bicycle, motorcycle, etc. as a vehicle. Always, look ahead cautiously to prevent unexpected and sudden situations from occurring.

Information

The Smart Cruise Control system may not operate temporarily due to:

  • Electrical interference
  • A modified suspension
  • Differences of tire abrasion or tire pressure
  • Installing different type of tires

Information

This device complies with Part 15 of the FCC rules.

Operation is subject to the following three conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

3. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the device.

Information

Radio frequency radiation exposure information:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with minimum distance of 8 in. (20 cm) between the radiator (antenna) and your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

    Sensor to Detect Distance to the Vehicle Ahead

    The Smart Cruise Control uses a sensor to detect distance to the vehicle ahead. If the sensor is covered with dirt or other foreign matter, the vehicle to vehicle distance control may not operate correctly...

    Leading Vehicle Departure Alert

    The Leading Vehicle Departure Alert system alerts the driver of the departure of the vehicle in front when the vehicle is stopped and the Smart Cruise Control (SCC) system is operating...
