1. Turn the engine off.

2. Turn all other switches OFF.

3. Open the fuse panel cover.

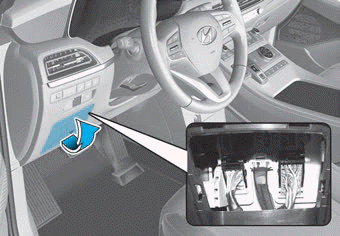

4. Refer to the label on the inside of the fuse panel cover to locate the suspected fuse location.

Hyundai Palisade. Replacement

5. Pull the suspected fuse straight out. Use the removal tool provided in the engine compartment fuse panel cover.

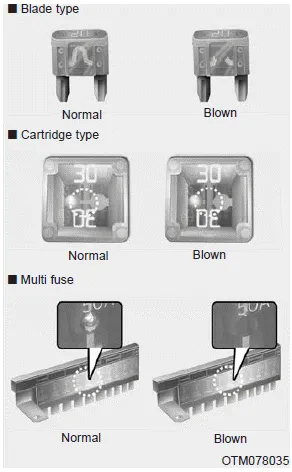

6. Check the removed fuse; replace it if it is blown. Spare fuses are provided in the instrument panel fuse panels (or in the engine compartment fuse panel).

7. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized HYUNDAI dealer.

In an emergency, if you do not have a spare fuse, use a fuse of the same rating from a circuit you may not need for operating the vehicle.

If the headlamps or other electrical components do not work and the fuses are undamaged, check the fuse panel in the engine compartment. If a fuse is blown, it must be replaced with the same rating.

Fuses

A vehicle's electrical system is protected from electrical overload damage by fuses. This vehicle has 2 (or 3) fuse panels, one located in the driver's side panel bolster, the other in the engine compartment near the battery...

Engine Compartment Panel Fuse Replacement

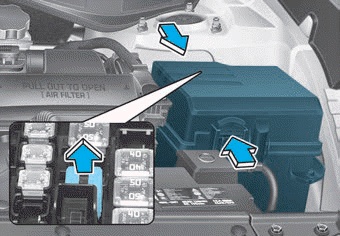

■ Blade type fuse ■ Cartridge type fuse 1. Turn the engine off. 2. Turn all other switches OFF. 3. Remove the fuse panel cover by pressing the tap and pulling up...
