Hyundai Palisade: Mirror / Inside Rear View Mirror

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body (Interior and Exterior) / Mirror / Inside Rear View Mirror

Components and components location

Component Location

Hyundai Palisade. Components and components location

1. Inside rear view mirror

Repair procedures

Replacement

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	Put on gloves to prevent hand injuries.

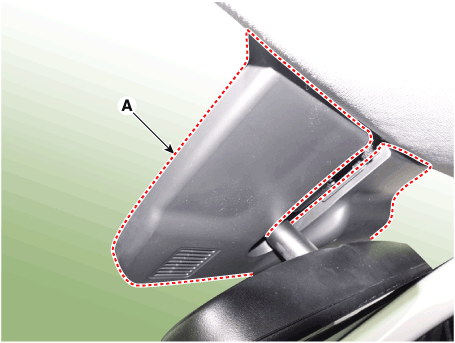

1.	Remove the inside rear view mirror cover (A).

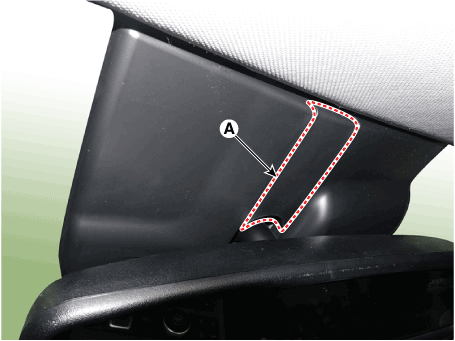

2.	Remove the rain sensor cover (A).

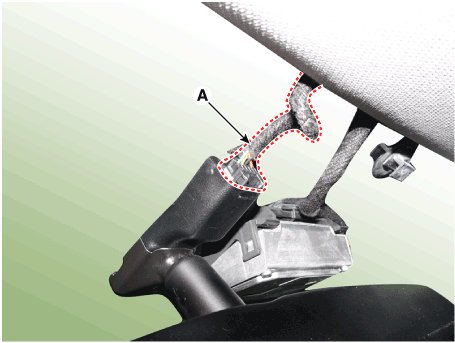

3.	Press the lock pin and separate the inside rear view mirror connector (A).

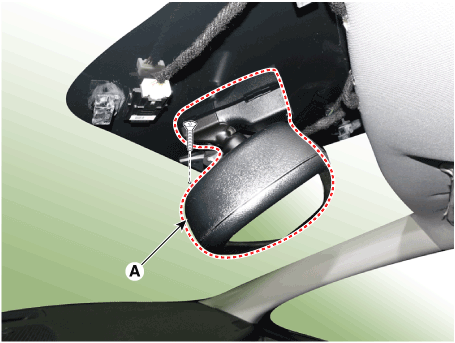

4.	Loosen the mounting screw and remove the inside rear view mirror assembly (A).

To install, reverse removal procedure.

•	Make sure the connector is connected properly.

•	Be careful not to damage the windshield glass.
