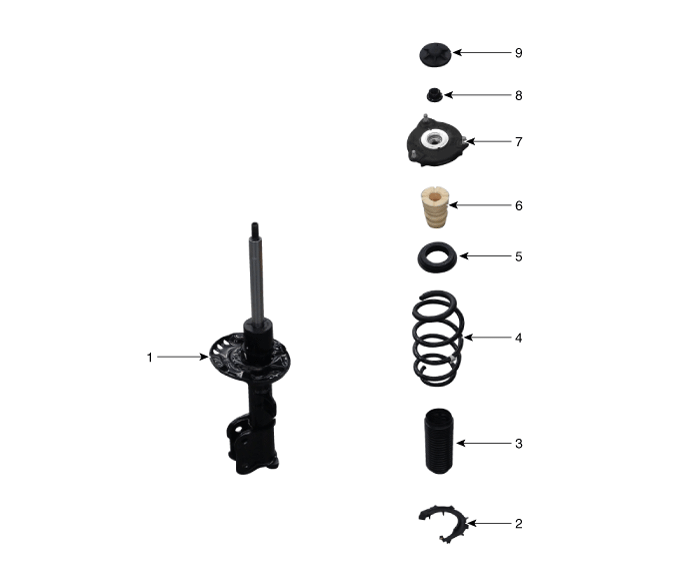

| Components |

| 1. Strut assembly 2. Spring lower pad 3. Dust cover 4. Coil spring 5. Spring upper pad |
6. Bumper rubber 7. Insulator assembly & sturt bearing 8. Lock nut 9. Insulator cap |
| Removal |
| 1. |
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
|
| 2. |

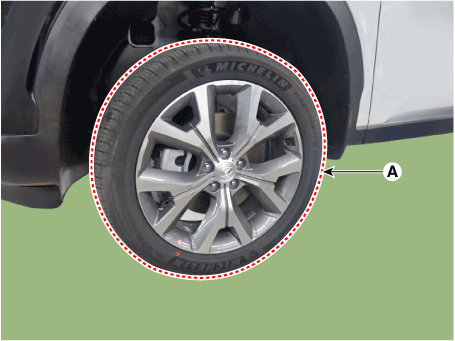

Remove the front wheel and tire (A) from the front hub.
|
| 3. |

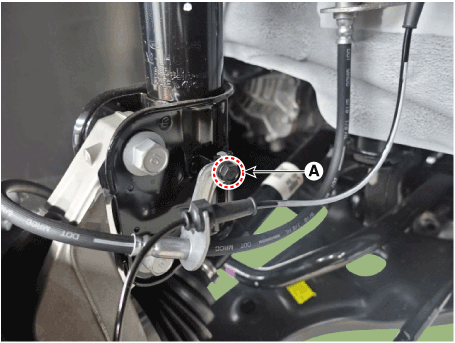

Disconnect the stabilizer link with the front strut assembly after loosening
the nut (A).
|
| 4. |
Loosen the mounting bolt (A) and then remove the brake hose bracket
from the strut assembly.
|
| 5. |

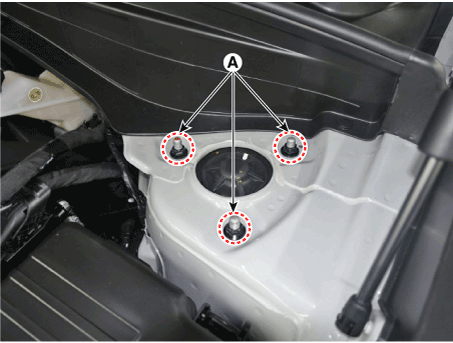

Loosen the upper strut mounting nuts (A).
|
| 6. |

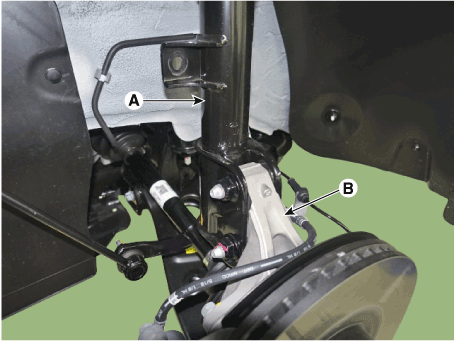

Remove the front strut assembly (A) from the front axle (B) by loosening
the bolts & nuts.
|
| Disassembly |
|
| 1. |

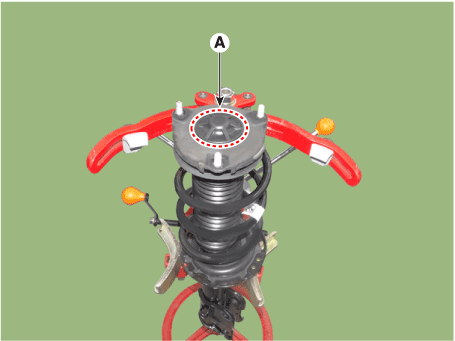

Remove the insulator cap (A).
|
| 2. |

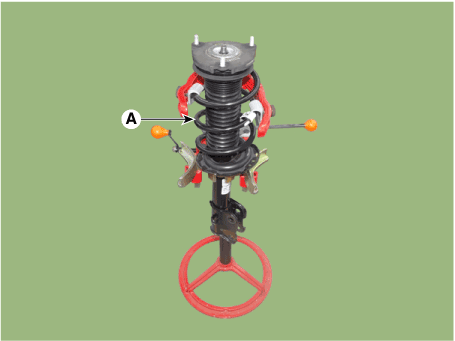

Using the spring compressor, compress the coil spring (A).
|
| 3. |

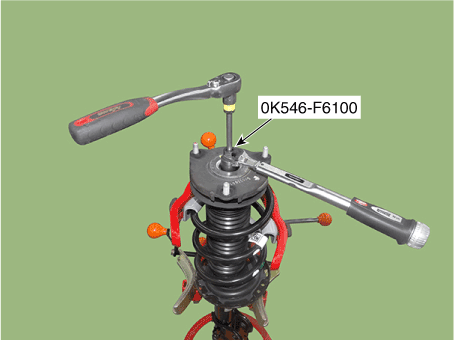

Using SST (0K546-F6100), loosen the self locking nut.
|
| 4. |
Remove the insulator, spring pad, coil spring and dust cover from the
strut assembly.
|
| Inspection |
| 1. |
Check the strut insulator for wear or damage.
|
| 2. |
Check rubber parts for damage or deterioration.
|
| 3. |

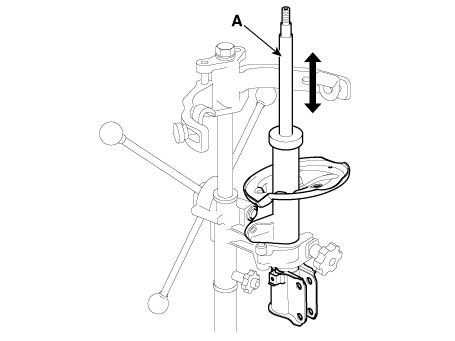

Compress and extend the piston rod (A) and check that there is no abnormal
resistance or unusual sound during operation.
|
| 1. |
Fully extend the piston rod.
|
| 2. |

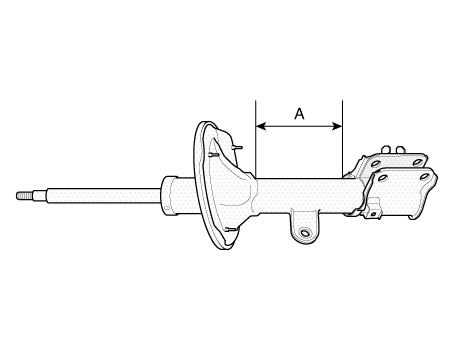

Drill a hole on the A section to remove gas from the cylinder.
|
| Reassembly |
| 1. |
Install the insulator, spring pad, coil spring and dust cover from the
strut assembly.
|
| 2. |
Compress and extend the piston rod (A) and check that there is no abnormal
resistance or unusual sound during operation
|
| 3. |
Using the special tool (0K546-F6100), install the self locking nut.
|
| Installation |
| 1. |
Install in the reverse order of removal.
|
| 2. |
Check the alignment.
(Refer to Suspension System - "Alingment")
|
