Hyundai Palisade: Emergency Call System (Russia) / Emergency Call (eCall) Antenna
Repair procedures
1. |
Disconnect the negative (-) battery terminal.
|
2. |
Remove the rear roof trim.
(Refer to Body - "Roof Trim Assembly")
|
3. |

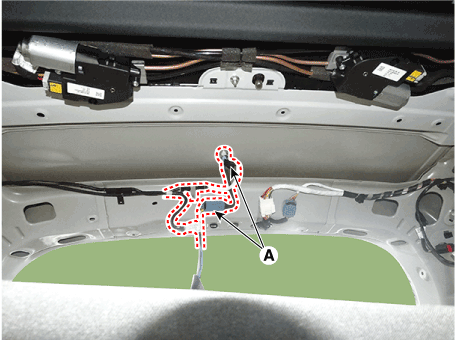

Disconnect the roof antenna connectors (A) from the roof antenna.
![Hyundai Palisade. Repair procedures](images/emergency_call_ecall_antenna-896/390/hyundai_palisade__repair_procedures_3307.gif)
|
4. |

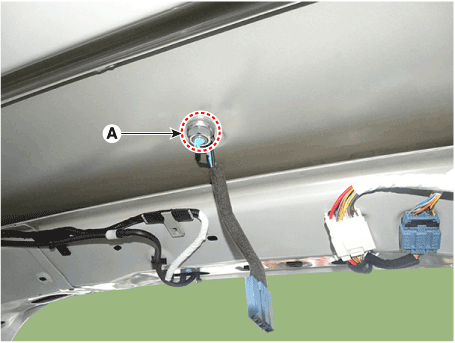

Remove the roof antenna (A) after removing a nut.
![Hyundai Palisade. Repair procedures](images/emergency_call_ecall_antenna-896/390/hyundai_palisade__repair_procedures_3308.gif)
|
1. |
Connect the roof antenna connectors and then install the roof antenna.
|
2. |
Install the rear roof trim.
–
|
Make sure that the cables and connectors are plugged
in properly.
|
–
|
Check the eCall system for normal operation.
|
|
|
